Solid wood machines
The SCM multi-blade rip saw is designed for high-precision, continuous straight-line ripping of solid wood panels, boards, and timber. Engineered for industrial production environments, it delivers maximum timber yield, exceptional cut quality, and outstanding structural rigidity.
Featuring a heavy-duty cast-iron machine bed, the saw effectively dampens vibrations to ensure superior cutting precision and long blade life. Its advanced chain transport system guarantees smooth, slip-free workpiece feeding even when processing wet, uneven, or heavy hardwoods.
Equipped with quick-change blade arbors and versatile fence configurations, this machine allows rapid setup changes between different cutting patterns. Integrated multi-level anti-kickback fingers and safety enclosures ensure operator safety without sacrificing throughput. It is the ideal core machine for joineries, furniture manufacturers, timber yards, and pallet production facilities requiring maximum output and minimal waste.
SCM Multi-Blade Rip Saw – Technical Data
| Technical Feature | Specification |
|---|---|
| Max. Cutting Height | 100 – 150 mm (depending on blade diameter) |
| Max. Saw Blade Diameter | 300 – 350 mm |
| Min. Saw Blade Diameter | 200 – 250 mm |
| Saw Blade Bore Diameter | 70 – 80 mm |
| Max. Passage Width | 650 – 800 mm |
| Max. Chain Width / Cutting Track | 300 – 400 mm |
| Min. Workpiece Length | 500 – 750 mm |
| Feed Speed (Variable) | 4 – 35 m/min (inverter-controlled) |
| Main Motor Power | 22 – 55 kW (30 – 75 HP) |
| Feed Motor Power | 1.5 – 3.0 kW |
| Arbor Speed | 3,800 – 4,200 RPM |
| Dust Extraction Outlet | 2x Ø 150 mm / 1x Ø 200 mm |
| Min. Extraction Air Speed | 25 – 30 m/s |
| Operating Voltage | 400 V / 50 Hz (3-Phase) |
| Overall Machine Dimensions (L × W × H) | approx. 2,200 × 1,750 × 1,650 mm |
| Approximate Weight | 2,200 – 3,500 kg |
Standard Features & Highlights:

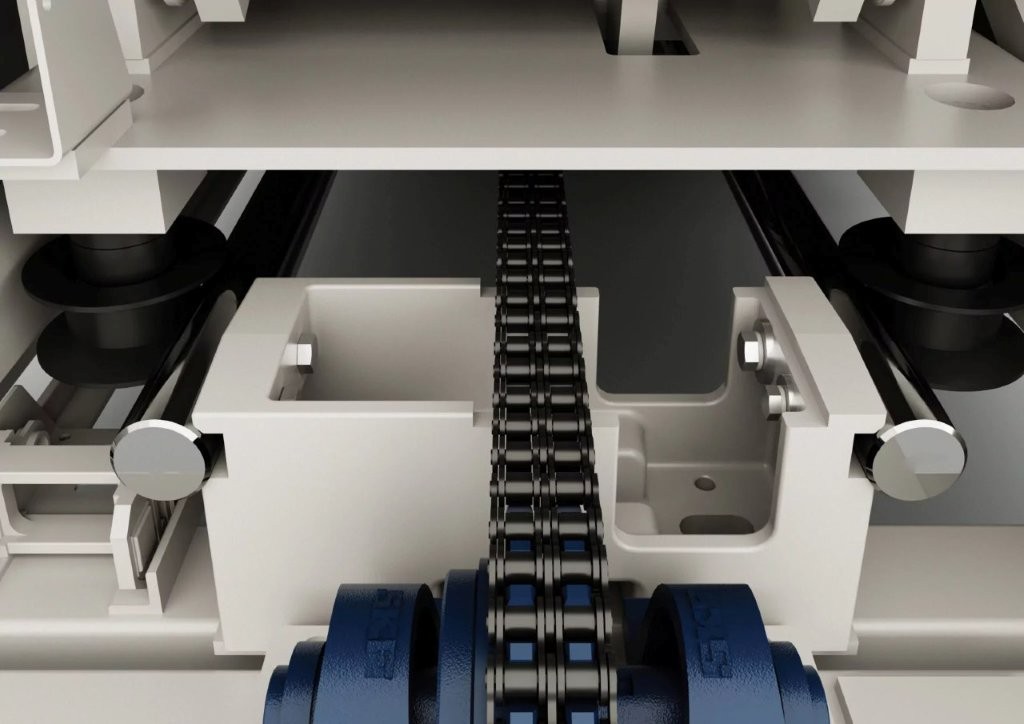

High-precision chain conveyor track with automatic lubrication
Top pressure rollers with pneumatic adjustment for secure feeding
Double upper and lower anti-kickback safety device
Quick-locking saw arbor sleeve system for fast blade setup
Centralized lubrication panel for low maintenance
Authorized Sales & Distribution Partner Mischi kurt, contact us directly for detailed quotes, delivery schedules, customized options, and technical support.
The Salvamac Classic 50 is an industrial-grade semi-automatic cross-cut saw engineered for precision, speed, and safety in modern solid wood and panel processing. Designed to optimize cutting routines in woodworking shops and packaging production, it features a robust electro-welded steel frame and ergonomic two-hand safety controls that ensure reliable operation under continuous load. Its smooth pneumatic blade lifting mechanism guarantees clean, repeatable cuts across broad timber profiles.
TECHNICAL DATA SHEET
| Parameter | Specification |
|---|---|
| Blade Diameter | 500 mm |
| Blade Bore Diameter | 30 mm |
| Motor Power | 5.5 kW (7.5 HP) |
| Spindle Speed | 2,800 RPM |
| Max. Cutting Width (H 30 mm) | 310 mm |
| Max. Cutting Width (H 125 mm) | 250 mm |
| Max. Cutting Height | 125 mm |
| Pneumatic Working Pressure | 6 bar |
| Dust Extraction Outlets | 2 x 120 mm |
| Working Table Height | 900 mm (±20 mm) |
| Operation Type | Pneumatic blade ascent via dual push-button control |
Authorized Sales & Distribution Partner Mischi kurt, contact us directly for detailed quotes, delivery schedules, customized options, and technical support.
€ 8.000
The Salvamac Classic 60 is a heavy-duty semi-automatic cross-cut saw engineered for precision, speed, and maximum operator safety in solid wood cutting applications. Designed for demanding industrial woodworking environments, it combines robust mechanical construction with ergonomic two-hand safe operation.
Key Features & Advantages:
Solid Construction: The heavy-duty, powder-coated steel frame minimizes vibration, ensuring high cutting precision and long machine longevity.
Ergonomic & Safe Operation: Equipped with two-hand push-button controls to guarantee complete operator protection during the cutting stroke.
Pneumatic Pressure Beam: A powerful upper pneumatic presser holds the workpiece firmly in place before blade engagement, delivering clean, tear-out-free cuts.
Flexible Integration: Seamlessly integrates with entry and exit roller conveyors, manual length stops, or fully automated positioning systems (such as the Salvastop series).
Versatile Cutting Range: Engineered to easily handle large-section timber, beams, and multiple board stacks in a single operation.
Technical Data Sheet: Salvamac Classic 60
| Parameter | Specification |
|---|---|
| Machine Model | Salvamac Classic 60 |
| Blade Diameter | $\varnothing\ 600\text{ mm}$ |
| Bore Diameter | $\varnothing\ 30\text{ mm}$ |
| Motor Power | $7.5\text{ kW}$ ($10\text{ HP}$) |
| Blade Rotation Speed | $2,800\text{ RPM}$ |
| Maximum Cutting Capacity (H x W) | $150 \times 310\text{ mm}$ or $100 \times 390\text{ mm}$ |
| Working Height / Table Height | $900\text{ mm} \pm 20\text{ mm}$ |
| Operating Air Pressure | $6\text{ bar}$ |
| Dust Extraction Outlet | $2 \times \varnothing\ 120\text{ mm}$ |
| Air Consumption per Cycle | ~ $7\text{ Nl}$ |
| Electrical Requirement | $400\text{ V} / 50\text{ Hz} / 3\text{-phase}$ |
| Machine Dimensions (L x W x H) | Approx. $1,200 \times 1,100 \times 1,500\text{ mm}$ |
| Weight | Approx. $520\text{ kg}$ |
Authorized Sales & Distribution Partner Mischi kurt, contact us directly for detailed quotes, delivery schedules, customized options, and technical support.

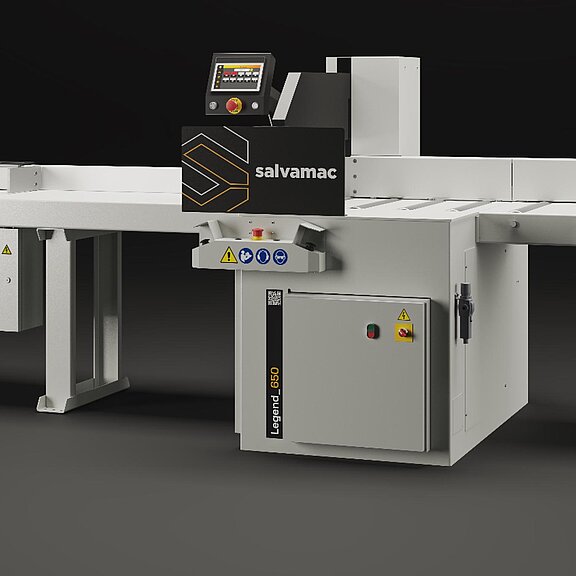

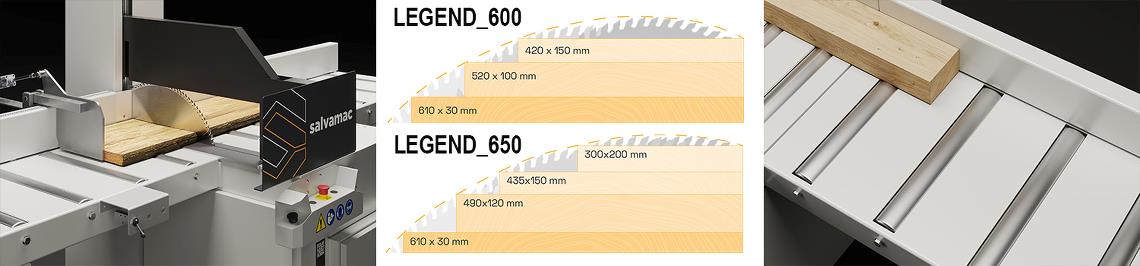

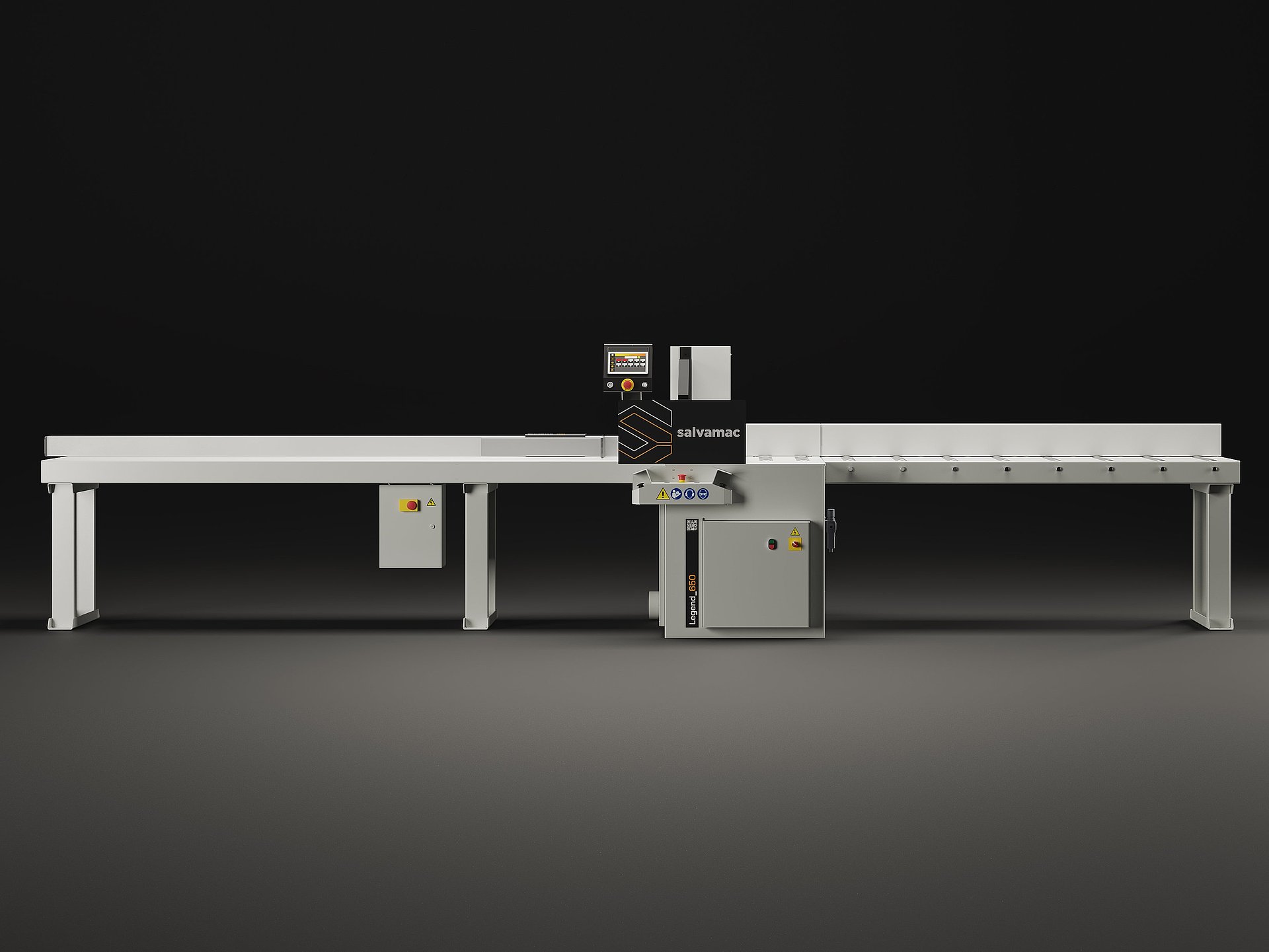

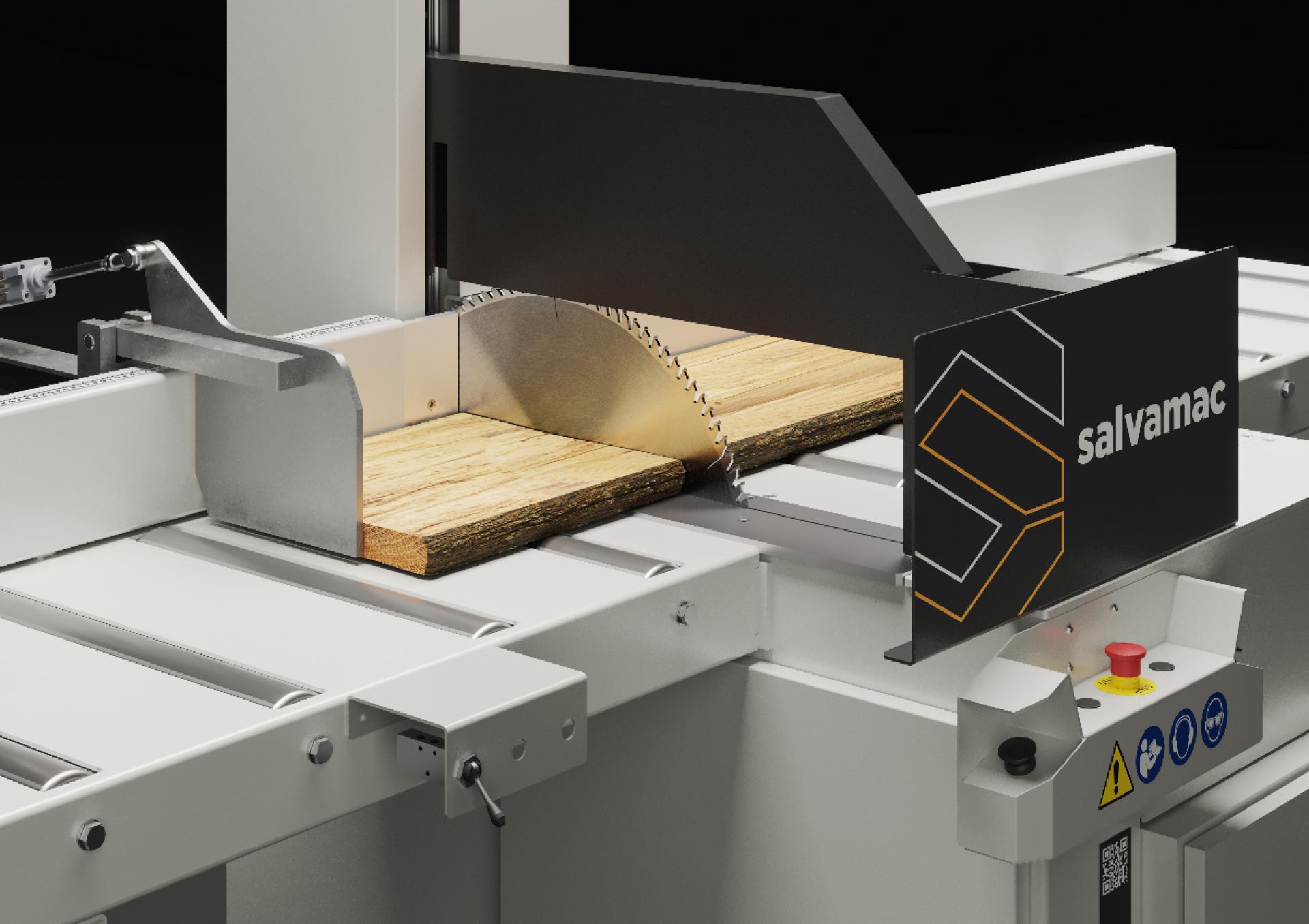

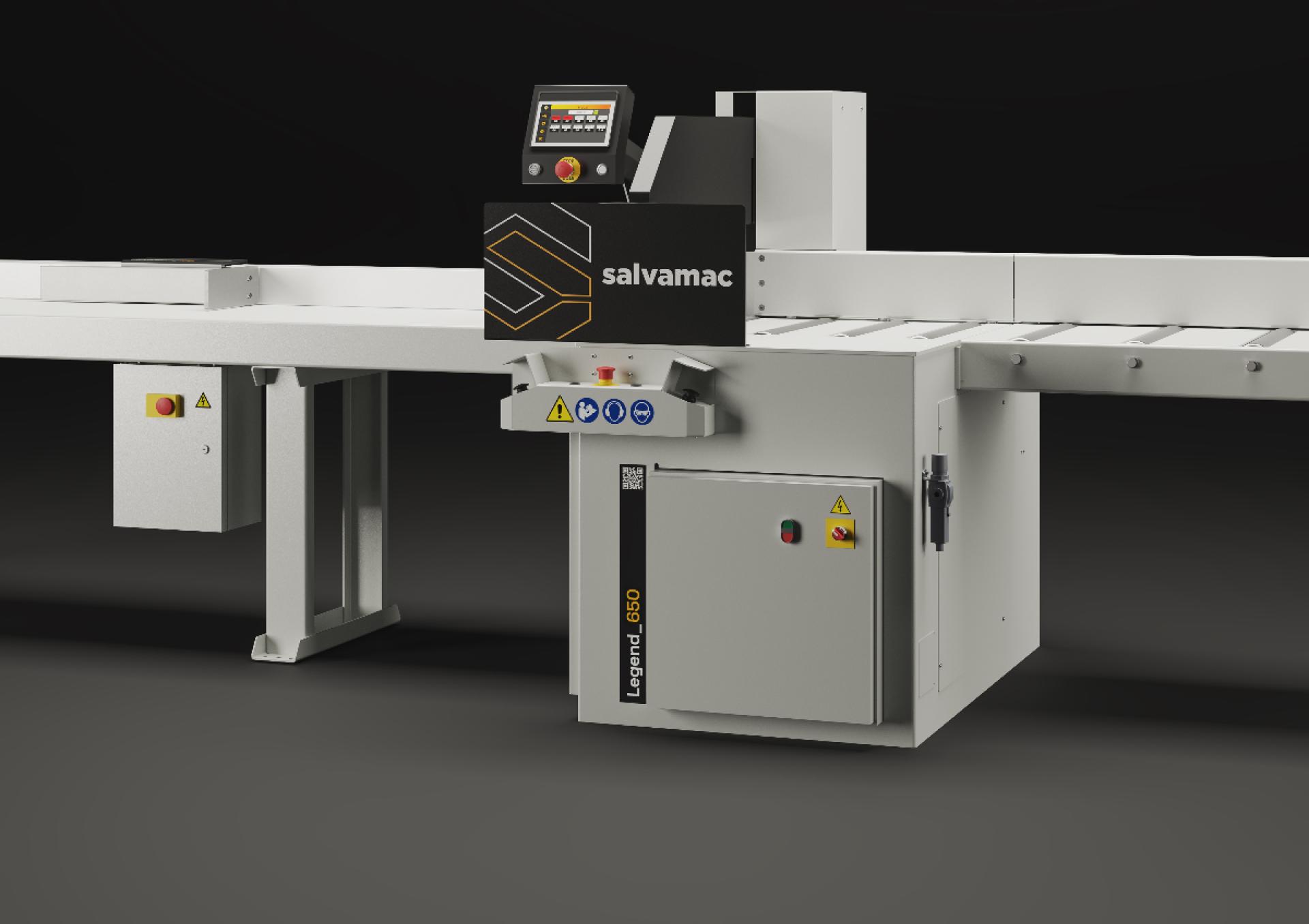

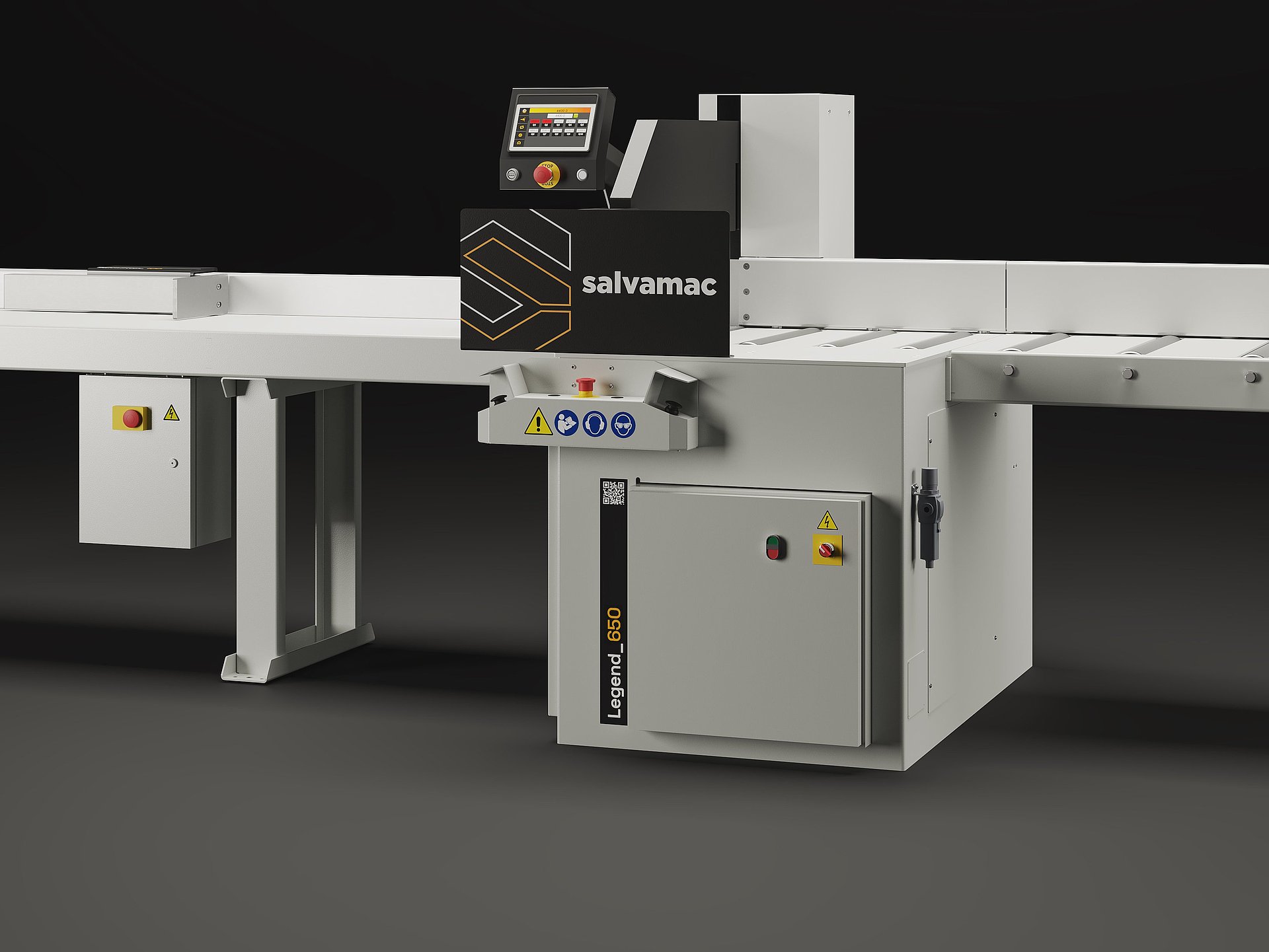

Salvamac Legend 650 – Heavy-Duty Semi-Automatic Cross-Cut Saw
The Salvamac Legend 65 is a robust, heavy-duty semi-automatic cross-cut saw engineered for high-performance industrial timber cutting, pallet production, and solid wood processing. Designed for demanding production environments, the Legend 65 combines extreme structural rigidity with advanced ergonomic two-hand safety controls.
Equipped with a large 650 mm blade and a high-torque 9.2 kW motor, this model handles large timber cross-sections and multiple-board stacks with precision and speed.
Key Features & Advantages:
Rigid Steel Construction: Heavy-duty, powder-coated frame designed to eliminate vibration, ensuring high cutting precision and long mechanical life under continuous operation.
Pneumatic Timber Clamping: Powerful upper pneumatic presser holds workpieces firmly prior to blade entry, delivering clean, tear-out-free cuts across all wood types.
Two-Hand Safety System: Ergonomic dual-push-button control ensures maximum operator protection throughout the entire cutting stroke.
Versatile Modular Integration: Fully compatible with infeed/outfeed roller conveyors, manual mechanical stops, or automated positioning systems (such as the Salvastop range).
Technical Data Sheet: Salvamac Legend 65
| Parameter | Specification |
|---|---|
| Machine Model | Salvamac Legend 65 |
| Blade Diameter | 650 mm |
| Bore Diameter | 30 mm |
| Main Motor Power | 9.2 kW 12.5 HP |
| Blade Rotation Speed | 2,800 rpm |
| Max. Cutting Capacity (H x W) | 180 x 340 mm or 120 x 430 mm |
| Working Table Height | 90 cm |
| Operating Air Pressure | 6 bar |
| Air Consumption per Cycle | 9 Nm |
| Dust Extraction Outlets | 2 X 120 mm |
| Electrical Requirement | 400 VOLT/ 50 Hz / 3 phase |
| Machine Dimensions (L x W x H) | approx 130 x 115 x 160 cm |
| Machine Weight | Approx. 650 kg |

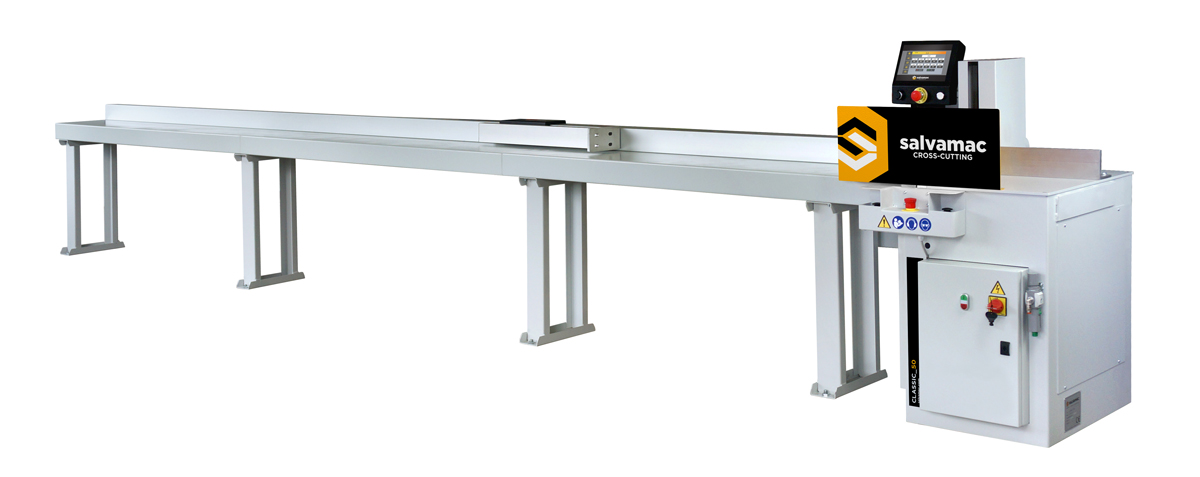

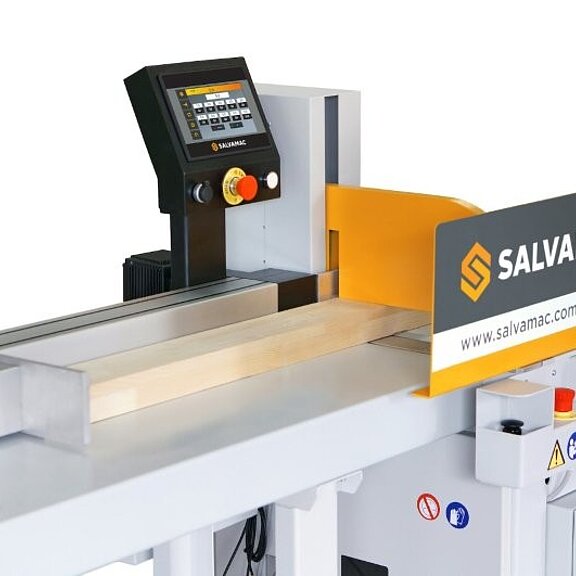

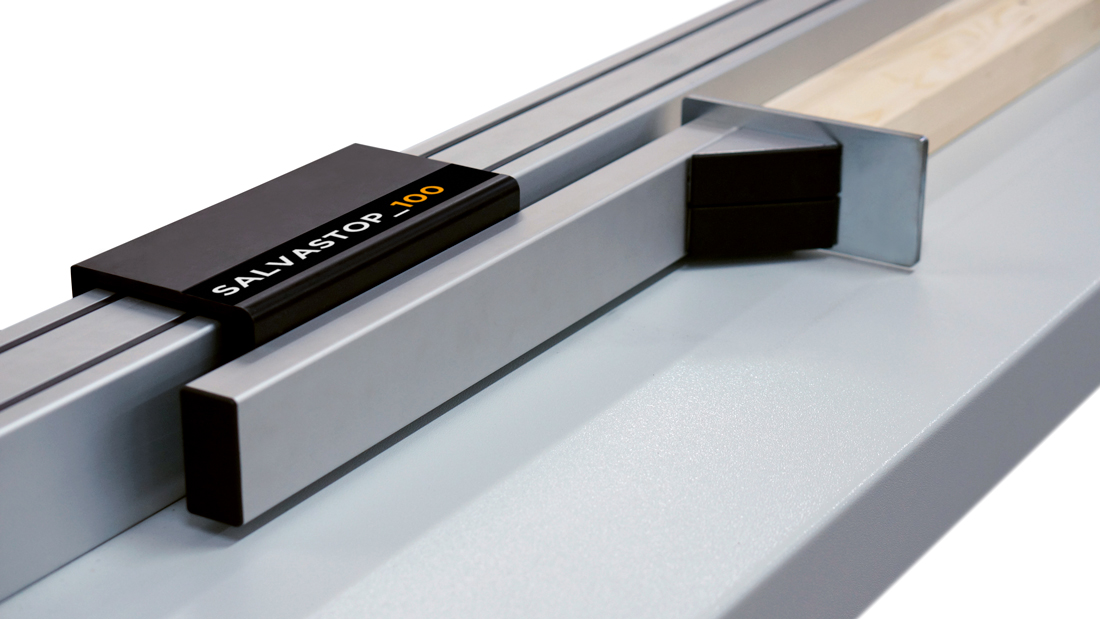

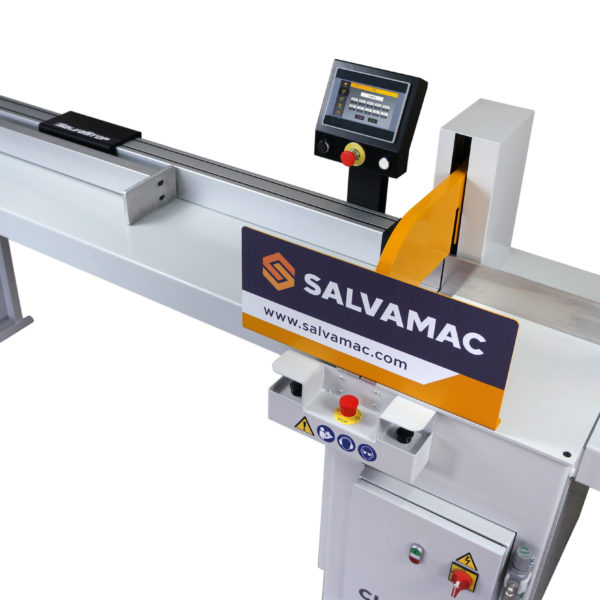

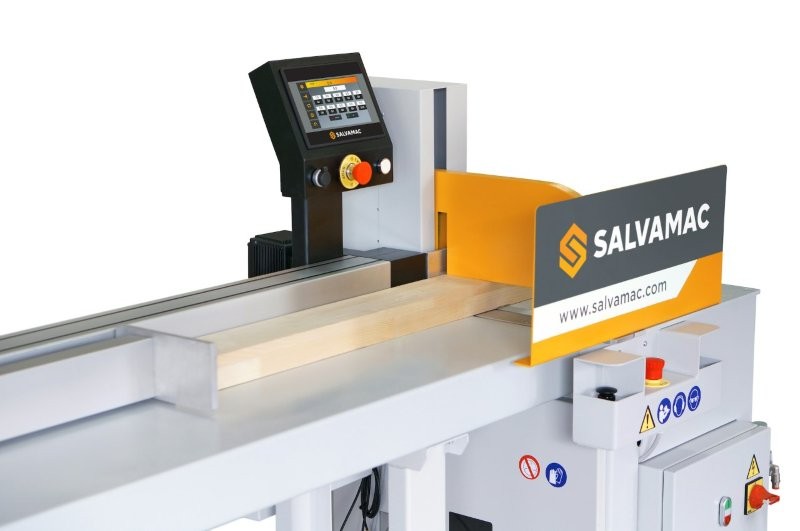

The Salvamac SalvaStop 100 is an advanced, numerical control (NC) linear positioning and electronic stop-pushing system engineered to transform manual crosscut saws, radial arm saws, and profile cutting machinery into semi-automatic, high-efficiency cutting stations. Designed to replace manual tape measuring and mechanical stops, the SalvaStop_100 eliminates operator error, drastically reduces cycle times, minimizes material waste, and optimizes labor efficiency across solid wood, aluminum, PVC, and composite material processing.
1. Structural Architecture & Mechanical Engineering
Heavy-Duty Beam Structure: Built around an extra-thick, high-rigidity 100 x 100 mm extruded anodized aluminum profile with internal structural ribbing to prevent deflection over long working spans (up to 14 meters).
Linear Drive System: Features a heavy-duty continuous linear guide with recirculating ball bearings, driven by a high-tensile, steel-reinforced synchronous timing belt for backlash-free position transfer.
Pusher Carriage Assembly: Designed with high dimensional stability to support heavy pushing loads (up to 100 kg). Equipped with a flip-up / pneumatic tilting positioning arm (90° angle) to facilitate quick manual loading and unloading of raw materials.
2. Integrated Closed-Loop Servodrive System
Hardware Core: Driven by an integrated brushless servomotor equipped with absolute high-resolution encoder feedback operating in a closed-loop control architecture.
Precision & Reliability: Continuous real-time position checking ensures zero loss of steps under heavy pushing resistance, guaranteeing consistent positioning accuracy ($\pm 0.15\text{ mm}$) and long operational life.
3. Control Interface & Software Architecture

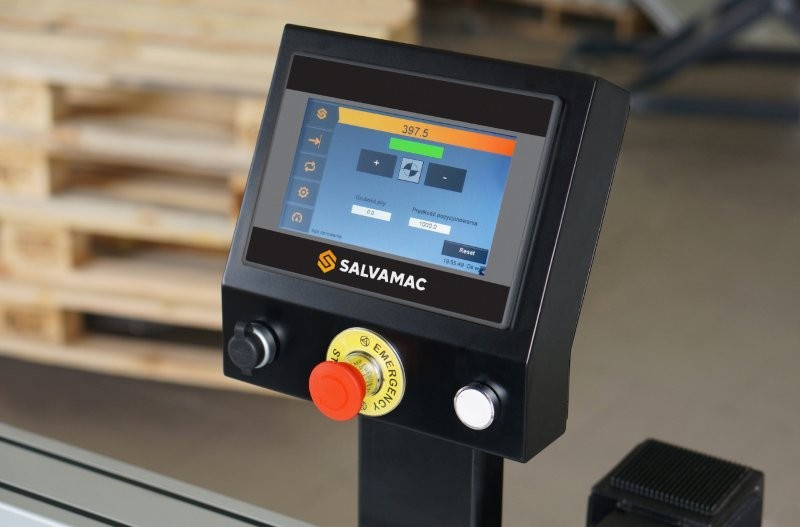

s-PAD Touchscreen Terminal: Features a 7-inch color graphic interface designed for intuitive, floor-ready operation with minimal operator training required.
Dual Primary Operating Modes:
STOP Mode: Acts as a motorized precision fence stop. The operator inputs the target length, and the arm automatically moves to position for manual cutting.
PUSH Mode: Functions as an automated pusher. The operator loads a complete workpiece, and the system automatically pushes the profile step-by-step according to predefined cutting lists.
5 Software Modules: Includes sections for manual entry, automatic cutting list execution, incremental movements, sequence management, and system diagnostics.
Remote Tele-Service: Integrated internet connectivity module enables real-time remote diagnostics, updates, and maintenance support directly by Salvamac technicians.
4. System Integration & Industry 4.0 Compatibility
The SalvaStop_100 easily integrates with Salvamac’s line of crosscut saws (Classic 40/50/60, Legend 500/600, Beverly) as well as third-party equipment. It supports external peripheral integration, including:
Barcode readers for instant cutting list activation.
Thermal label printers for workpiece traceability.
Ethernet/Wi-Fi network connection for ERP/MES software integration (Industry 4.0 ready).
Key Operational Advantages Summary
Zero Measuring Errors: Completely eliminates tape measures and human calculation errors.
High Productivity Gain: Increases cutting throughput by up to 50% compared to manual stop systems.
Labor Cost Reduction: Enables single-operator workflow for feeding, positioning, and cutting.
Material Savings: Significantly reduces timber waste through precise positioning and optimized cutting list execution.
TECHNICAL DATA SHEET (TECHNICAL SPECIFICATIONS)
| Parameter / Feature | Technical Specification Value |
|---|---|
| 1. Mechanical & Structure | |
| Beam Profile Dimensions | 100 mm x 100 mm (High-thickness anodized aluminum) |
| Standard Working Lengths | 3.0 m, 4.0 m, 5.0 m, 6.0 m 7.0 m (Custom lengths up to 14.0 m on request) |
| Pusher Carriage Type | Heavy-duty carriage with precision linear recirculating bearings |
| Drive Transmission | Steel-reinforced synchronous timing belt |
| Pusher Arm Type | Flip-up / Pneumatic tilt (90° positioning arm) |
| 2. Performance Metrics | |
| Drive Motor Type | Integrated Brushless Servomotor (Closed-loop feedback) |
| Maximum Positioning Speed | Up to 60 m/min (Software adjustable) |
| Positioning Accuracy | pm 0.15 mm |
| Maximum Pushing Load Capacity | Up to 100 kg (Depending on table roller friction) |
| 3. Control & Hardware Unit | |
| Control Terminal | Salvamac s-PAD Color Touchscreen Console |
| Display Size | 7-inch High-Contrast Touchscreen |
| Operating Modes | Dual Mode: STOP (Motorized Fence) / PUSH (Auto-Pusher) |
| Software Sections | 5 Dedicated Sections (Manual, Lists, Incremental, Sequence, Diagnostics) |

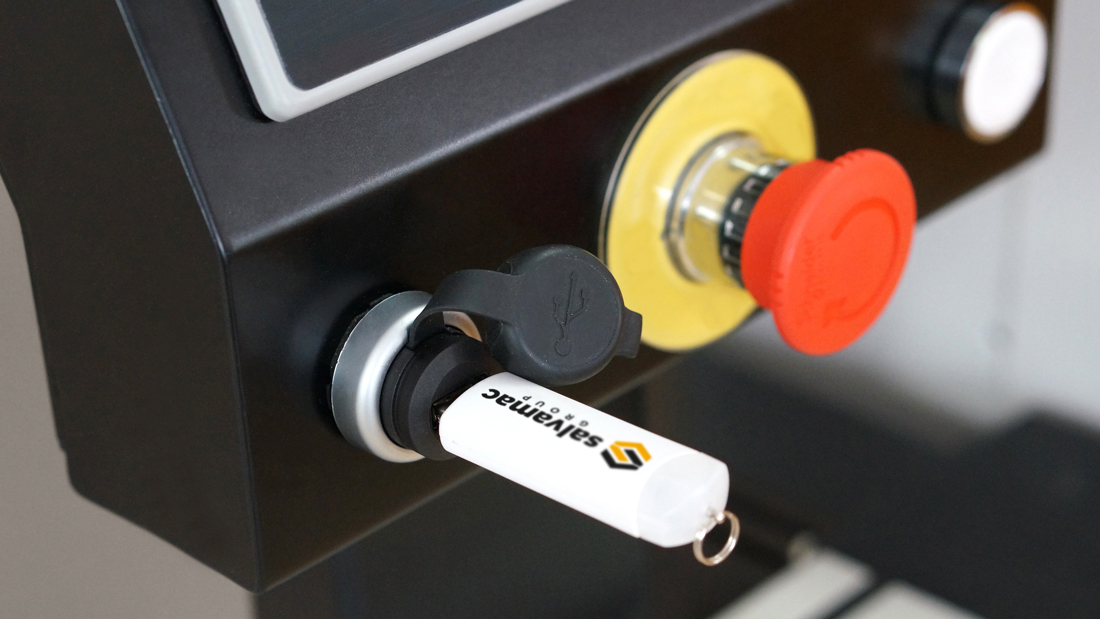

| Connectivity Ports | USB Port, RJ45 Ethernet Port, Wi-Fi (Optional) |
| Remote Support | Integrated Remote Tele-Service Module via Internet |
| 4. Power & Operating Requirements | |
| Supply Voltage | 230V AC Single-Phase, 50/60 Hz |
| Power Consumption | Approx. 0.8 kW |
| Pneumatic Supply | 6 bar (Required for models with pneumatic arm lift/clamping) |
| Operating Temperature | 0° to +45°C |
| 5. Machine Compatibility & Options | |
| Compatible Machines | Salvamac Classic, Legend, Beverly series & universal saws |
| Optional Peripherals | Barcode Scanner, Thermal Label Printer, Infeed/Outfeed Roller Tables |

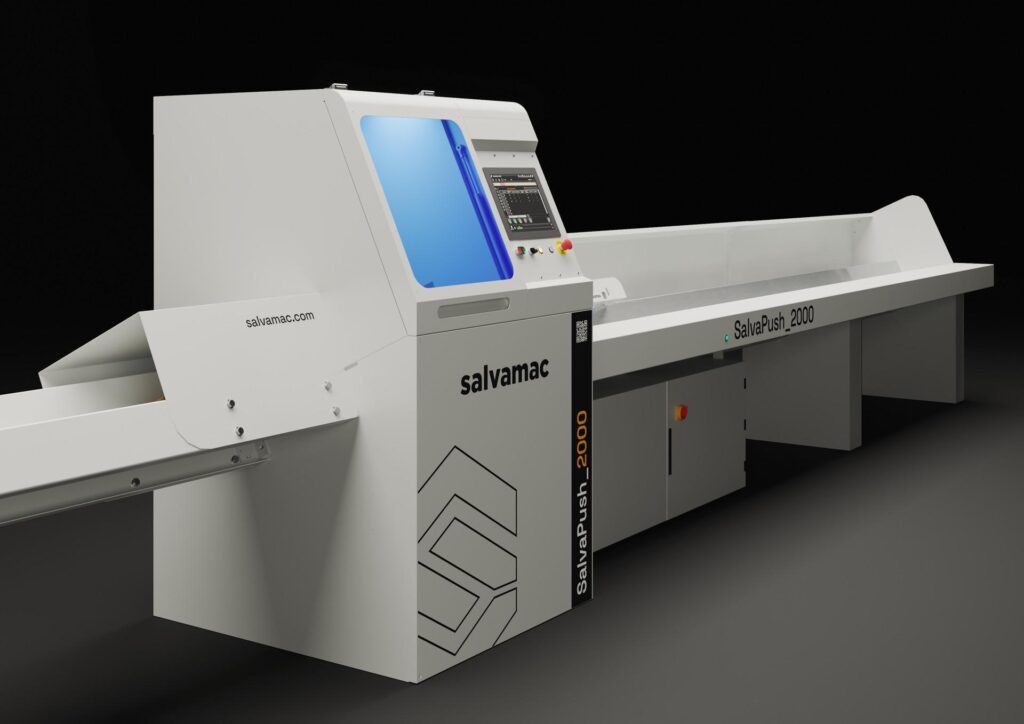

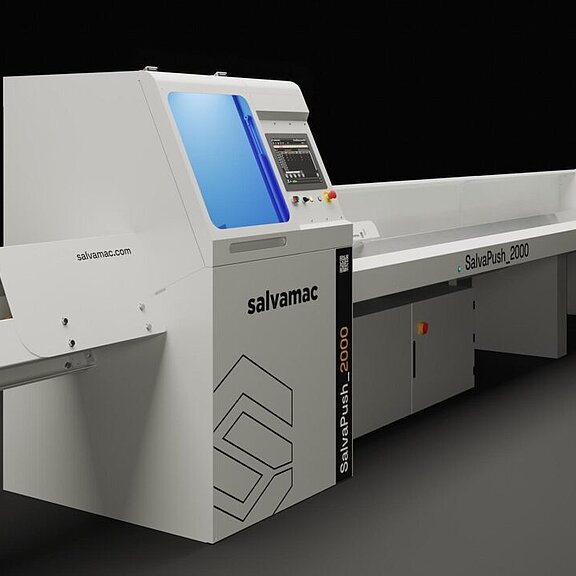

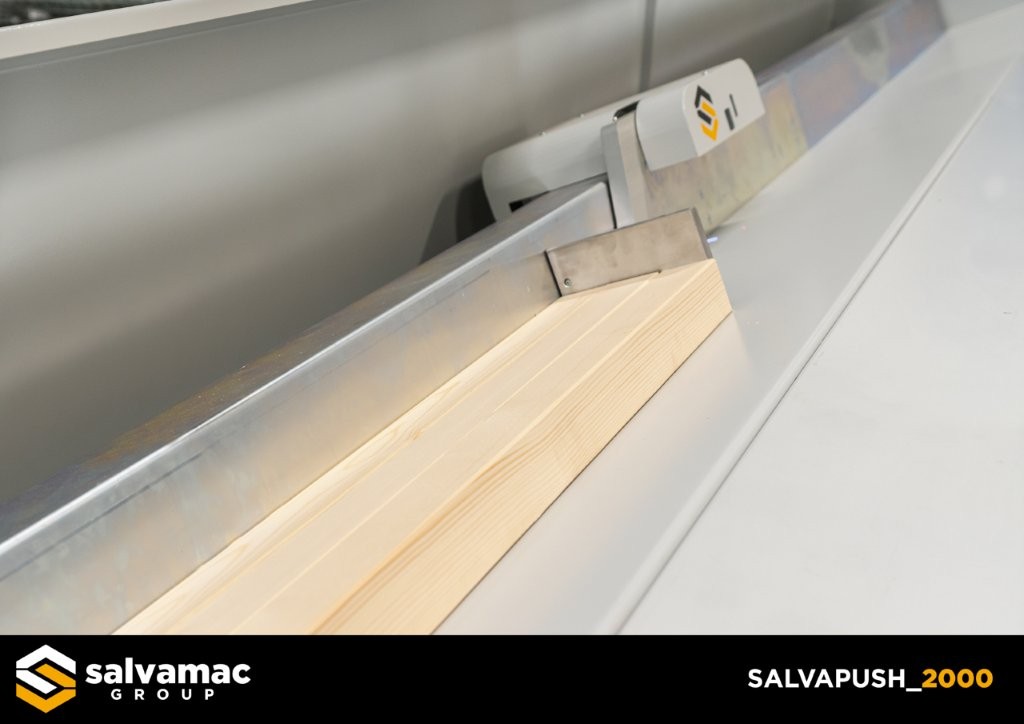

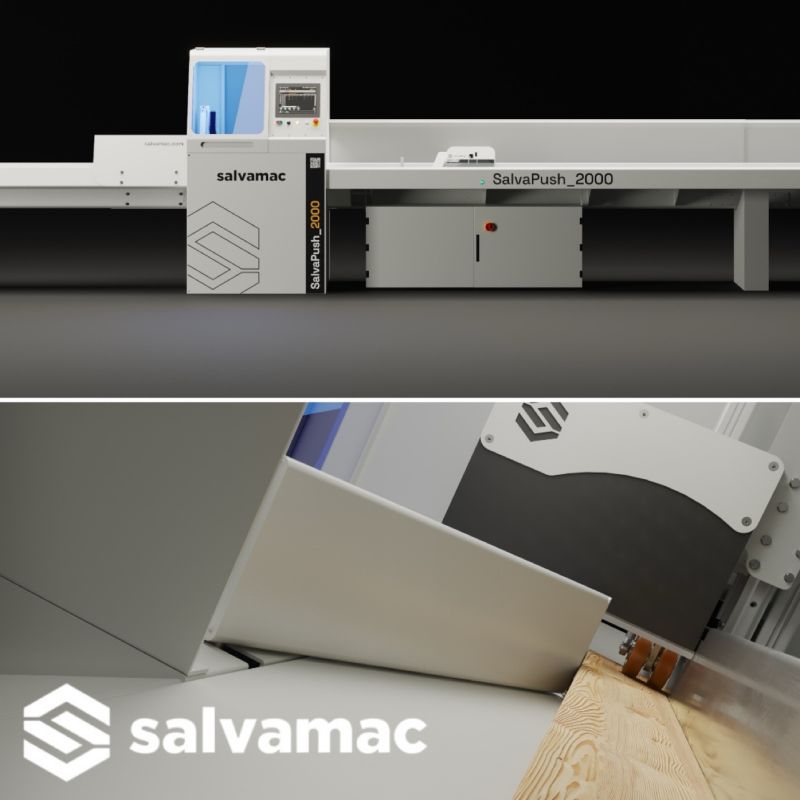

The SalvaPush 2000 by Salvamac is an automatic optimizing pusher crosscut saw designed for high-volume timber processing, defect removal, and yield optimization in woodworking, pallet production, joinery, and furniture manufacturing.
Ergonomic 25° Inclined Table: Both the infeed bed and cutting zone feature a 25° incline, using gravity to align boards against the fence without increasing working height or requiring complex manual alignment tools.

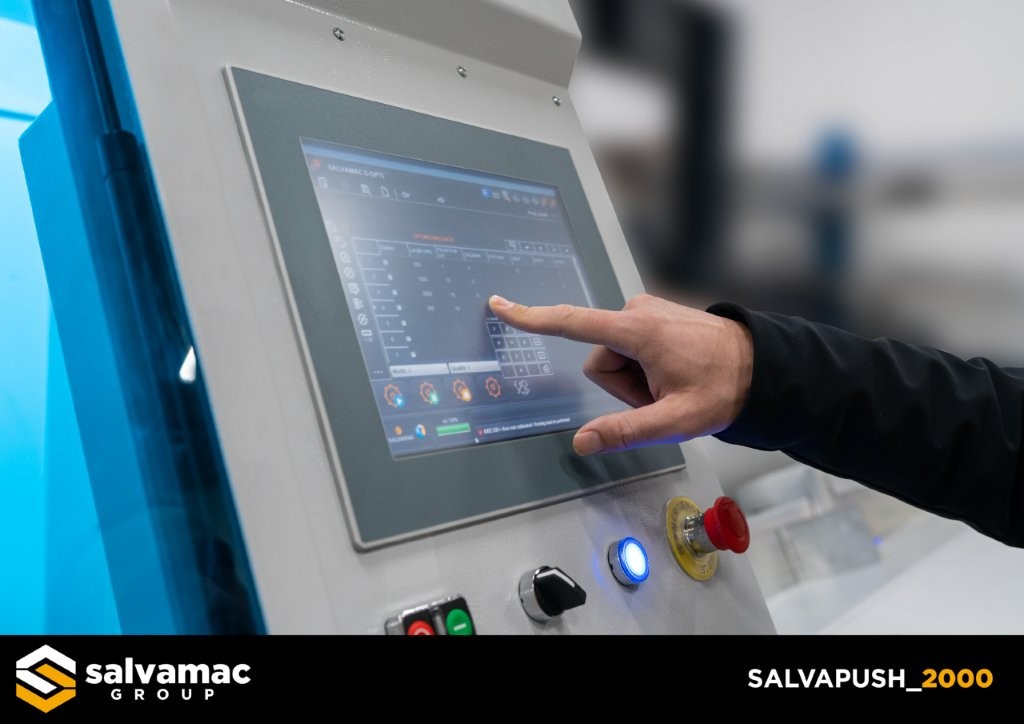

Pusher Drive & EtherCAT Control: Driven by a constant-torque electronic brushless servo motor via EtherCAT fieldbus (<1 ms latency), providing pusher speeds up to 60 m/min (optional high-speed versions up to 200 m/min) and high positioning accuracy ($\pm 0.2\text{ mm}$).
Heavy-Duty Transmission: Utilizes a 300 × 345 × 25 mm carriage running on dual hardened/rectified linear guides and a 50 mm wide timing belt embedded with 33 hard steel cores, ensuring long service life without stretch or dust sensitivity.

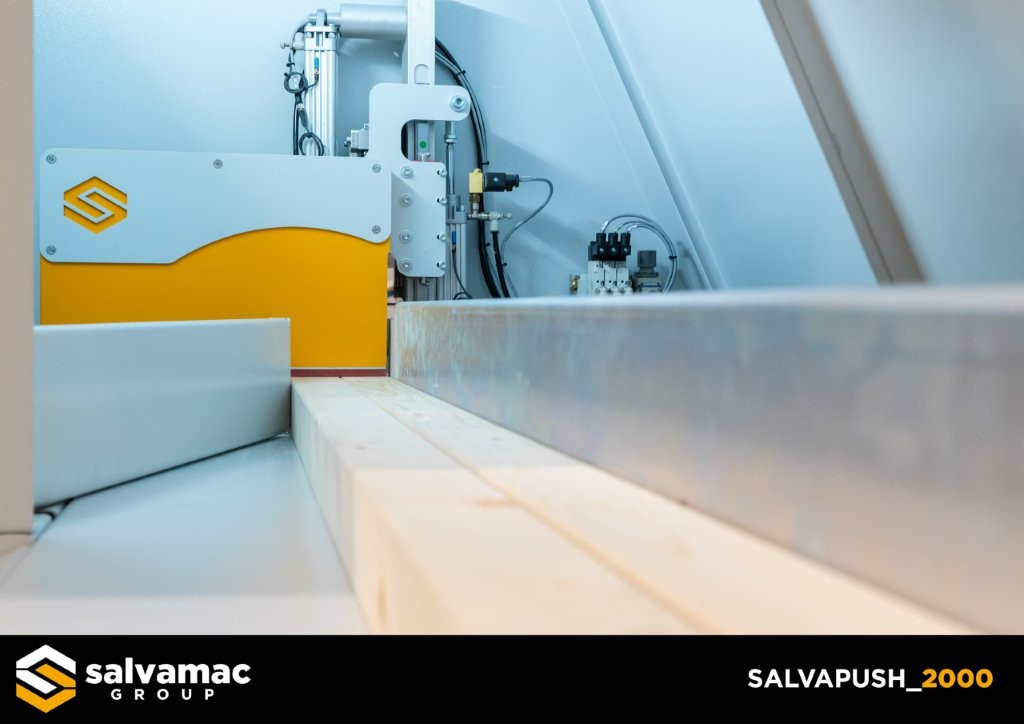

Smart Pressure Hood & Alignment: Features an intelligent top pressure beam that auto-adapts to timber thickness after the initial trim cut, paired with two internal electro-pneumatic side aligners (before and after the blade) for precision on final pieces.

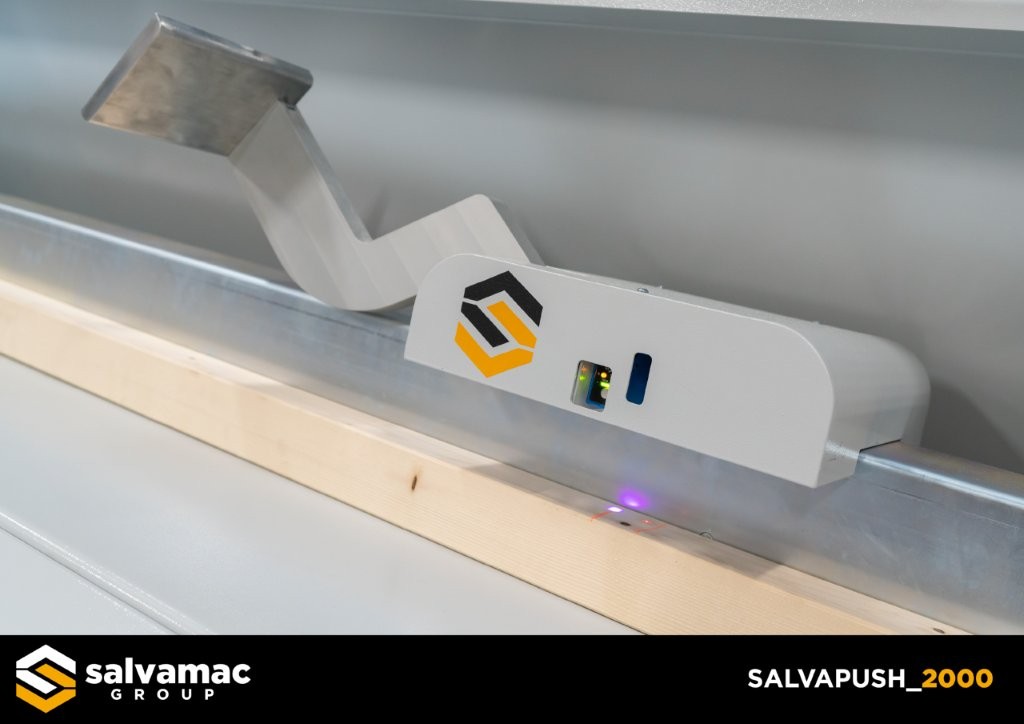

Defect Detection & Software: Integrated laser photocell for board length detection and luminescence reader for fluorescent defect marks. Operated via a 12" touchscreen running SALVA-OPTIM software with multi-grade optimization (up to 5 quality classes), real-time statistics, diagnostics, and internet tele-service.
Technical Data Sheet
| Category | Parameter | Specification / Value |
|---|---|---|
| Capacity | Infeed Length Options | 2,500 / 4,100 / 5,100 / 6,100 mm |
| Max. Cutting Section | 270 x 120 mm / 300 x 95 mm | |
| Min. Cutting Section | 30 x 12 mm | |
| Max. Timber Weight | 120 kg | |
| Cutting Unit | Saw Blade Diameter / Bore | 500 mm/ 35 mm |
| Blade Motor Power | 5.5 kW / 7.5 HP (Optional: 7.5 kW / 10 HP) | |
| Adjustable Cycle Duration | 0.1 to 1.0 seconds | |
| Pusher System | Pusher Travel Speed | Up to 60 m/min (Standard) / Up to 200 m/min (High Speed) |
| Drive System | Brushless Servo Motor with EtherCAT Connection | |
| Transmission | 50 mm belt with 33 internal steel cables | |
| Control Unit | Software & Screen | SALVA-OPTIM on 12" Industrial Touchscreen |
| Utilities | Pneumatic Connection | 6 bar (6 atm) — 190 Nl/min |
| Dust Extraction Speed | 30 m/sec |
Authorized Sales & Distribution Partner Mischi kurt, contact us directly for detailed quotes, delivery schedules, customized options, and technical support.

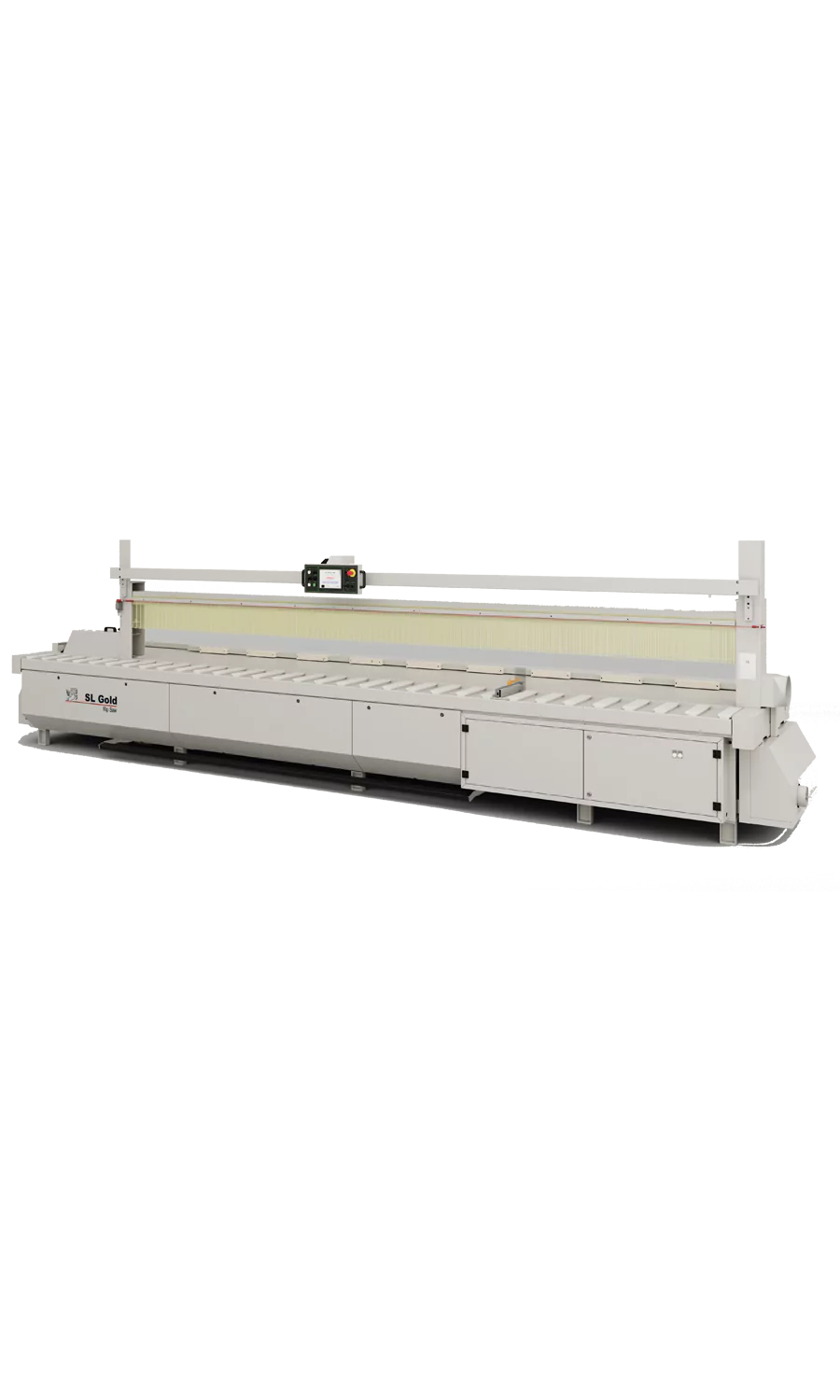

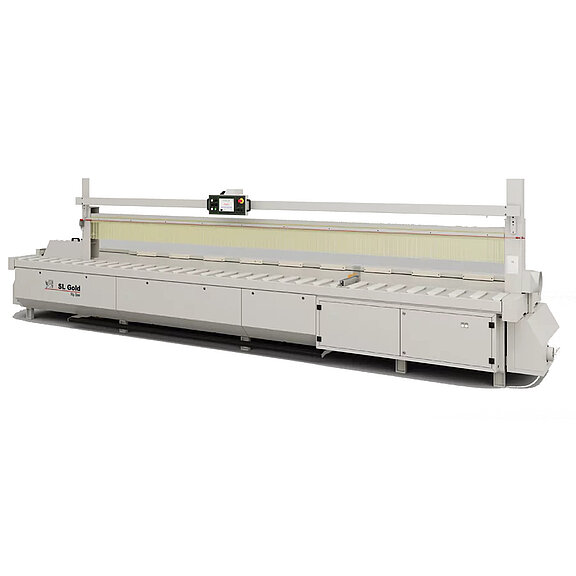

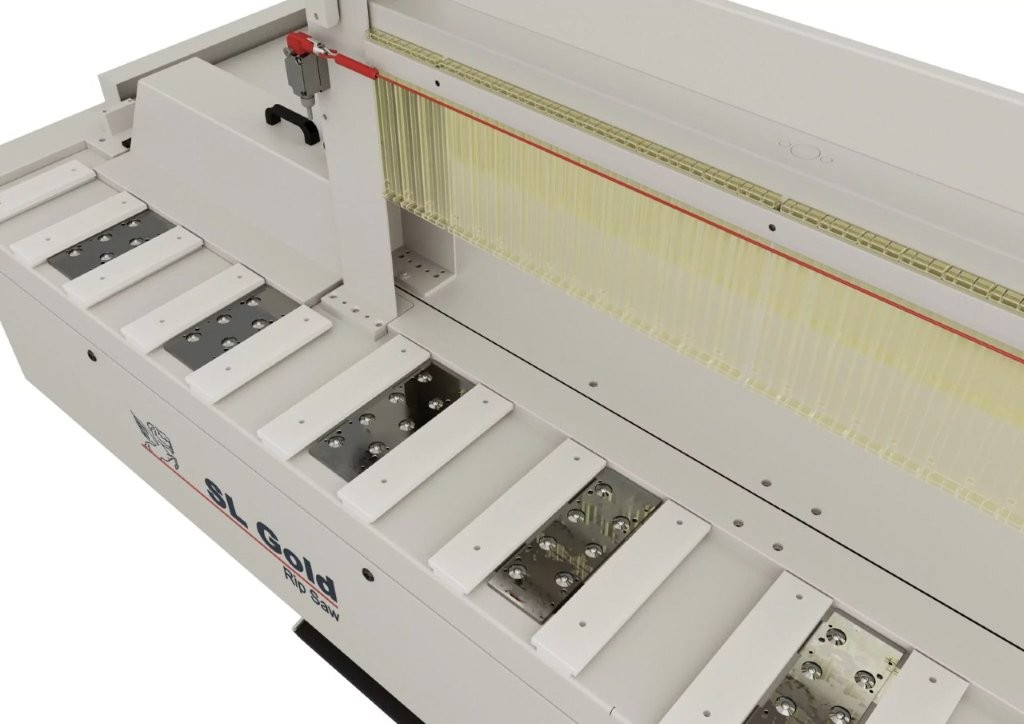

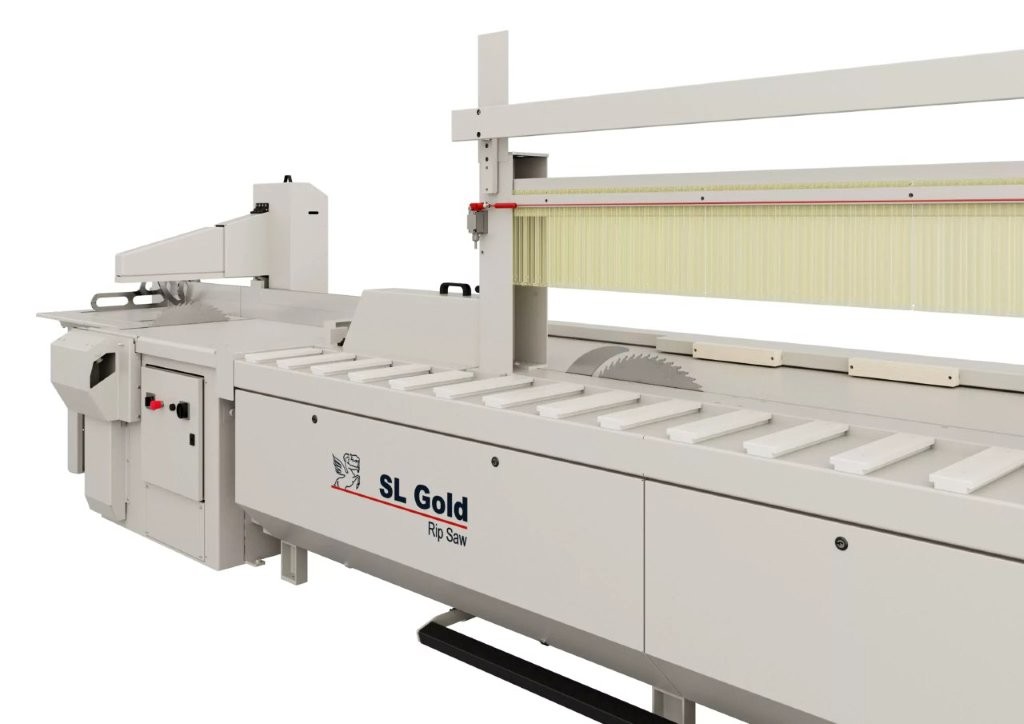

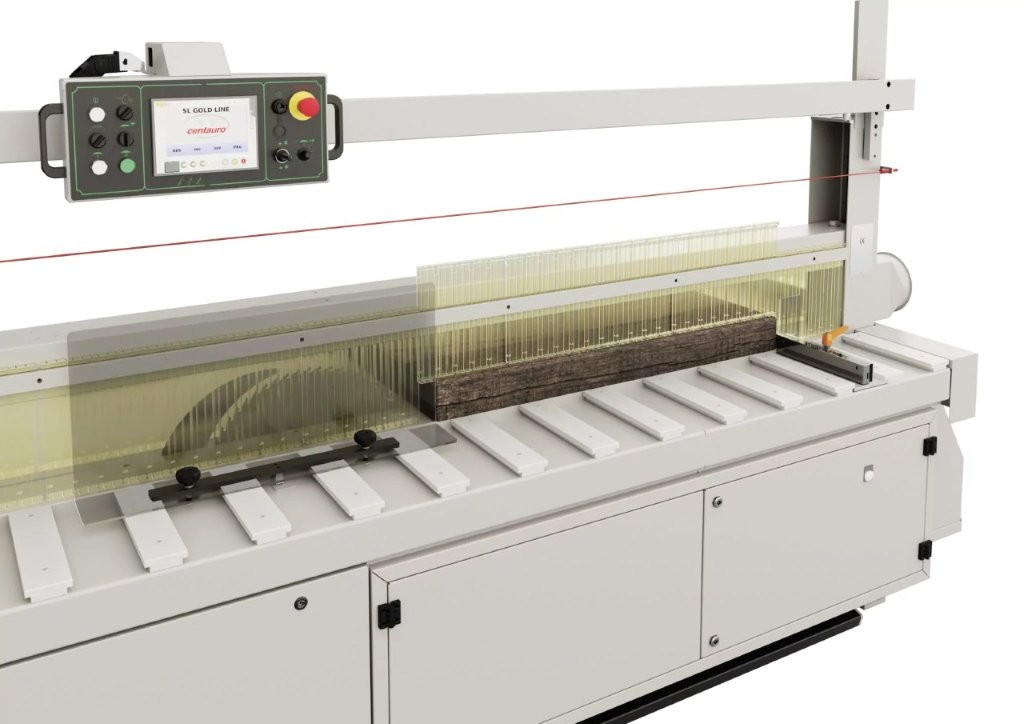

The CENTAURO SL GOLD rip saw for solid timber is an automatic, high-precision single-blade longitudinal straight-line rip saw engineered specifically for industrial woodworking plants, timber yards, and advanced joinery workshops. Designed to streamline edge-trimming, board squaring, and defect-cutting operations, the SL GOLD offers a highly reliable automated solution for processing solid hardwoods, softwoods, polyurethane panels, sandwich boards, rigid plastics, and light alloy sheets (such as aluminum).
By traversing the overhead saw carriage along a stationary material bed rather than forcing heavy timber manually across a table, the SL GOLD maximizes operator safety, significantly reduces labor intensity, and guarantees straight, clean, glue-joint quality cuts across board lengths of up to 8 meters.
Key Features & Technological Advantages

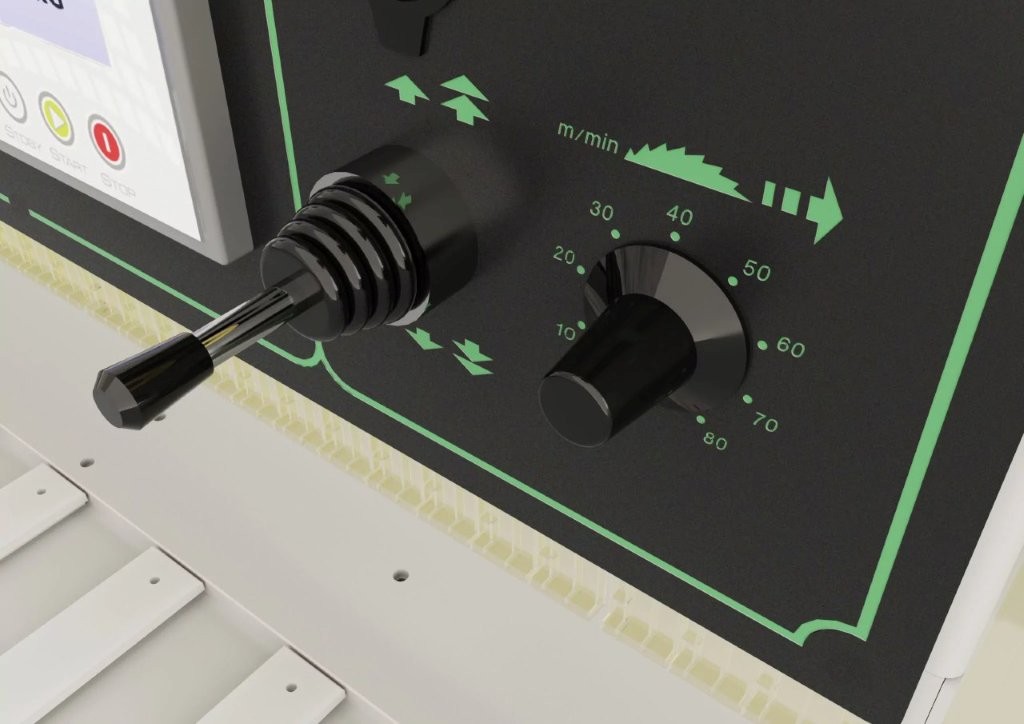

Electronic Variable Feed Speed (0 – 80 m/min):
Driven by a high-torque motor controlled via an electronic inverter, allowing fine-tuned feed adjustments from 0 up to 80 meters per minute. An automatic load-sensing system dynamically decelerates the carriage speed when encountering heavy cutting conditions or knots, protecting the saw blade and ensuring optimum surface quality.3-Position Motorized Blade Height Adjustment:
Blade elevation is electronically controlled with three pre-set depth positions. This enables rapid setups when switching between full-depth timber ripping, partial grooving, or quick clearance returns.Laser-Guided Precision Defect Removal:
Equipped with an overhead high-intensity red laser generator that projects a clear line along the entire length of the board, allowing operators to quickly align defect cuts (knots, cracks, wane) with minimal timber wastage.Heavy-Duty Construction & Material Clamping:

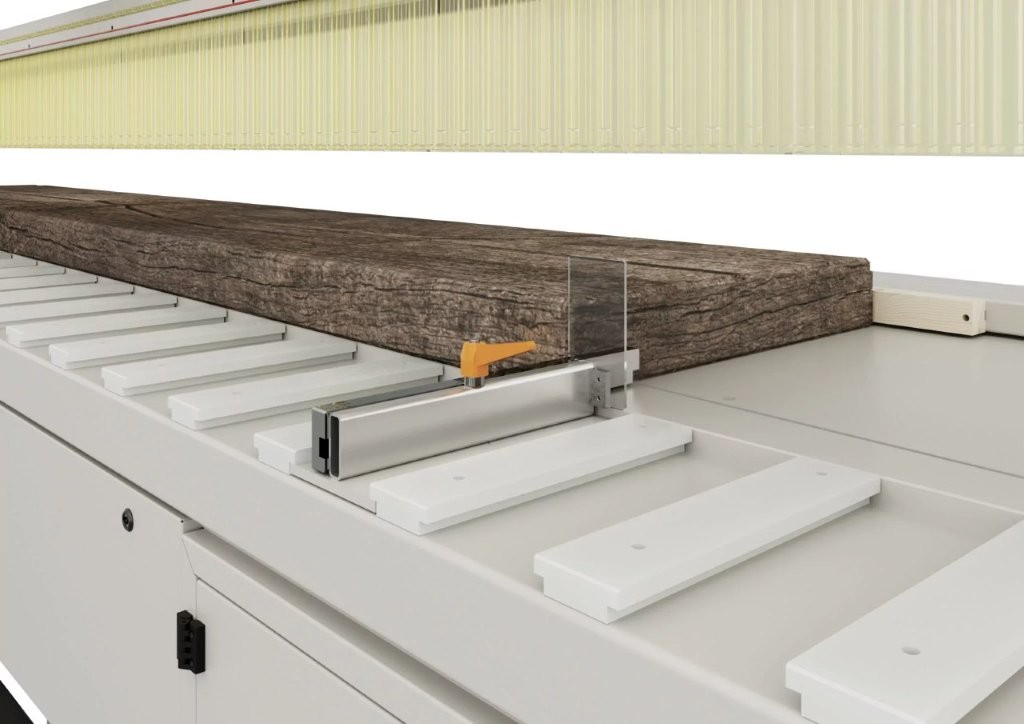

Built on a rigid, electro-welded steel frame designed to absorb cutting vibrations and maintain strict linear accuracy over long cutting strokes. Full-length pneumatic top pressure beams securely clamp the material down, preventing board movement during ripping.Operator Safety & Ergonomics:
Features an automatic drop-down bridge guard, anti-kickback mobile static-proof fingers, and a mobile sliding pendant control box that allows the operator to control feed rates, blade positioning, and emergency stops from any position along the machine bed.
Technical Data Sheet
| Specification Parameter | Technical Detail / Value |
|---|---|
| Machine Type | Automatic Longitudinal Single-Blade Straight-Line Rip Saw |
| Max. Cutting Depth (Height) | 160 mm (with Ø 550 mm blade) |
| Max. Cutting Width (Rip Distance) | 600 mm (Standard) / Up to 1200 mm (Optional) |
| Saw Carriage Feed Speed | 0 – 80 m/min (Variable via Inverter) |
| Blade Height Settings | 3 electronically selectable positions |
| Saw Blade Diameter | Max. Ø 550 mm (Bore Ø 30 mm) |
| Main Motor Power | 11.0 kW (15.0 HP) |
| Carriage Feed Motor Power | 1.5 kW (2.0 HP) |
| Total Installed Electrical Power | 13.25 kW |
| Pneumatic Operating Pressure | 6 bar |
| Dust Extraction Ports | 2 x Ø 130 mm (Lower frame) + 1 x Ø 200 mm (Top beam) |
| Laser Alignment Line | High-visibility overhead red laser |
| Workpiece Clamping System | Full-length pneumatic pressure beams |

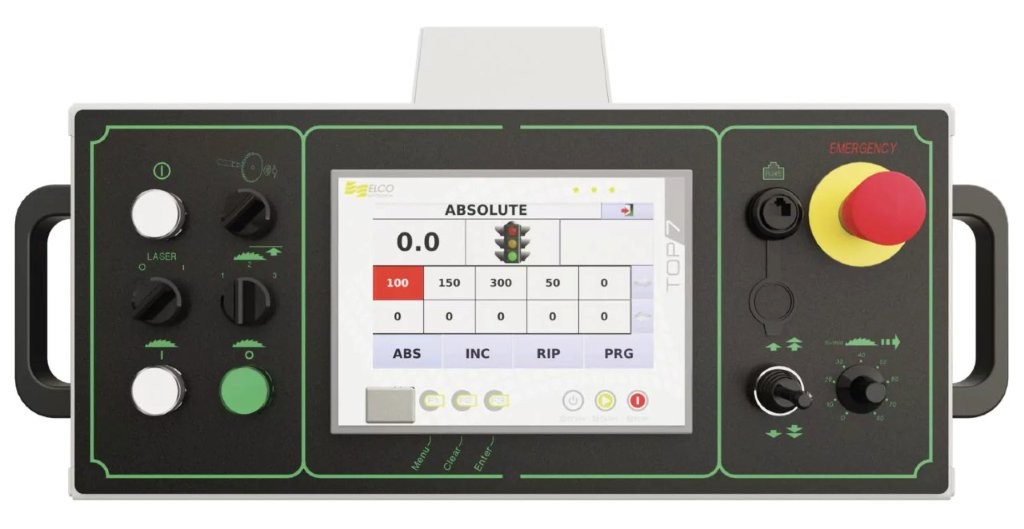

| Control Panel | Sliding overhead pendant control panel |
Available Model Variants (Cutting Length Options)
| Model Variant | Useful Cutting Length |
|---|---|
| SL GOLD 2000 | 2,210 mm – 2,450 mm |
| SL GOLD 3000 | 3,150 mm – 3,400 mm |
| SL GOLD 4000 | 4,050 mm – 4,300 mm |
| SL GOLD 5000 | 5,010 mm – 5,280 mm |
| SL GOLD 6000 | 5,900 mm – 6,150 mm |
| SL GOLD 8000 | 7,750 mm – 8,010 mm |
Dimensions & Weight Reference (SL GOLD 6000 Model)
Overall Dimensions (L x W x H): approx. 8,015 mm x 2,200 mm x 2,180 mm
Total Net Weight: approx. 2,600 kg
Noise Level: approx. 97.2 dB(A)
