Presses

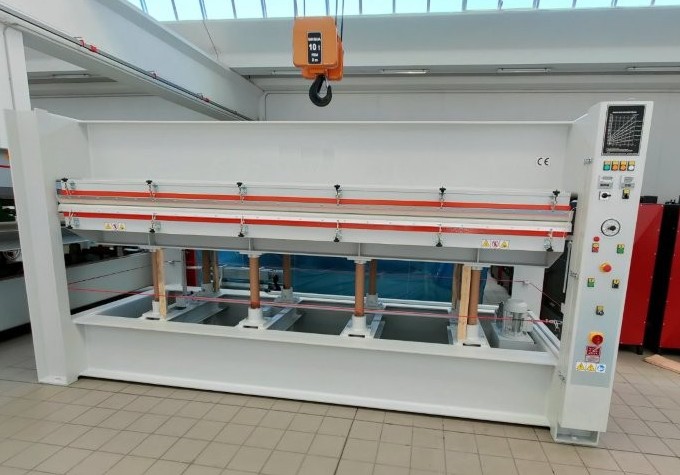

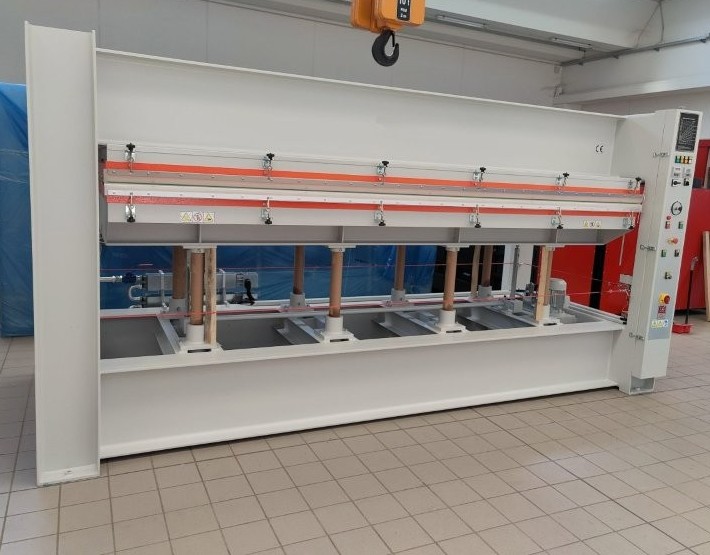

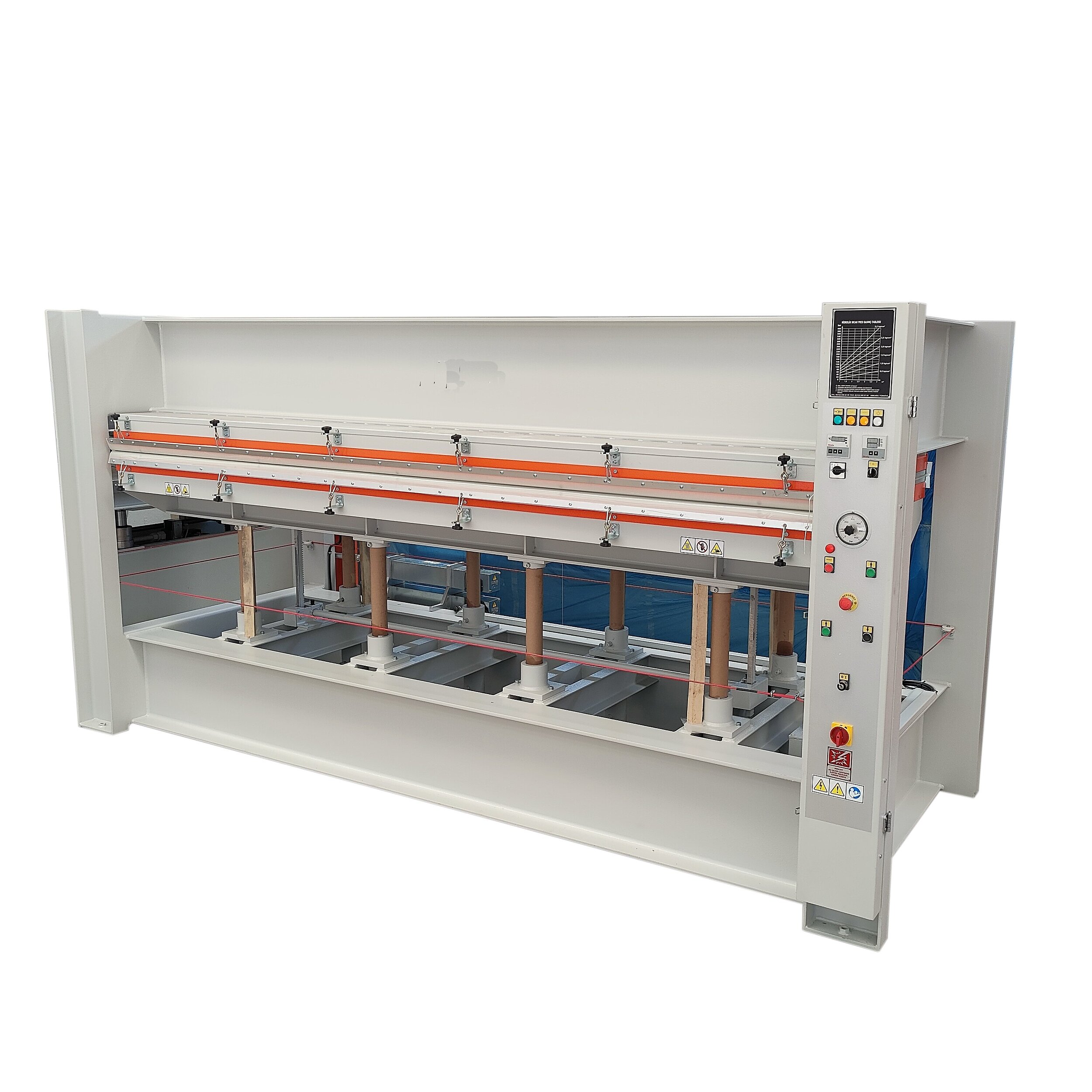

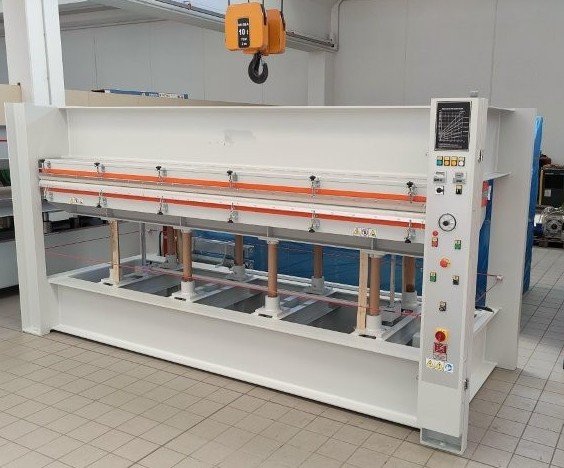

The UMUR UP90 is a robust, electro-hydraulic hot press from the renowned machine manufacturer Umur Makina in Ankara, Turkey, distributed by Mischi Gargazon. It was specifically designed for the precise bonding of veneers, laminates, decorative foils, and panels in professional furniture, door, and interior design applications.

Technical Data & Performance

*Model: UP 90
*Pressing force: 90 tons (approx. 900 kN)
*Pressing area: Standard 3000 × 1350 mm
*Heating system: Heated press plates with a specially developed UMUR resistance system (or thermal oil circulation) for homogeneous heat distribution

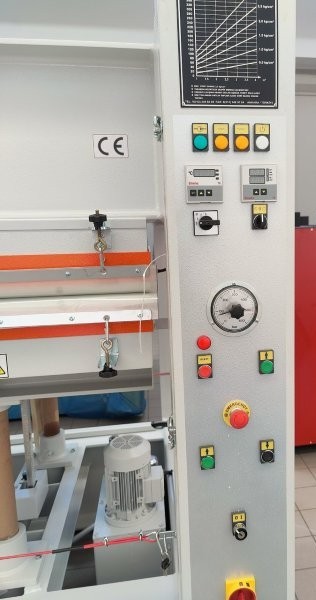

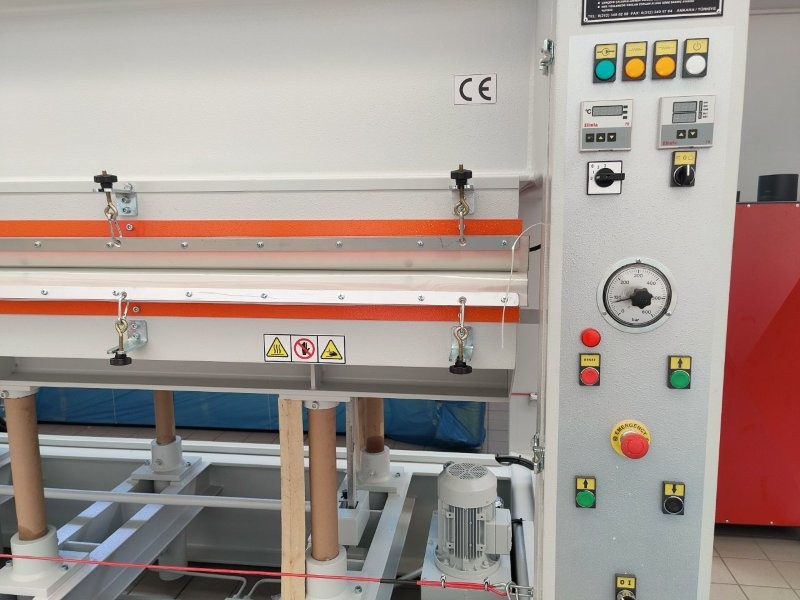

*Control: Integrated control panel with selectable modes for automatic and manual operation

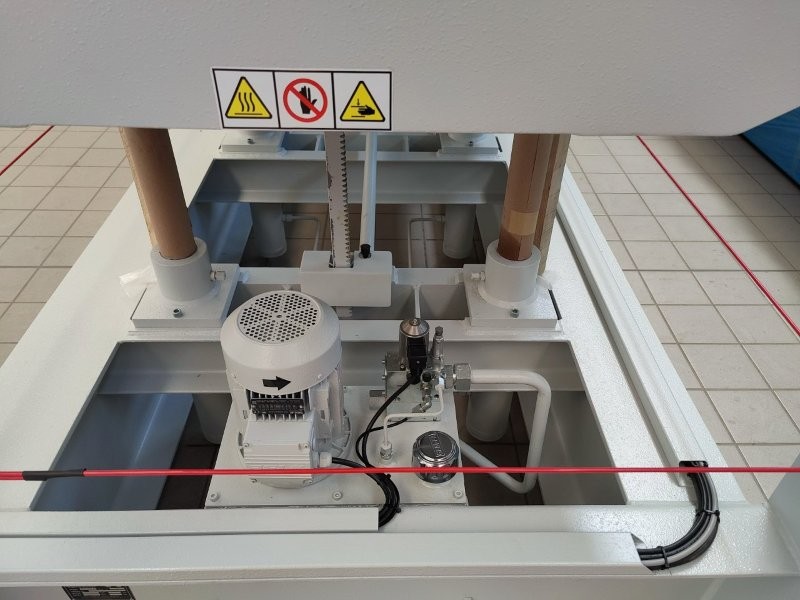

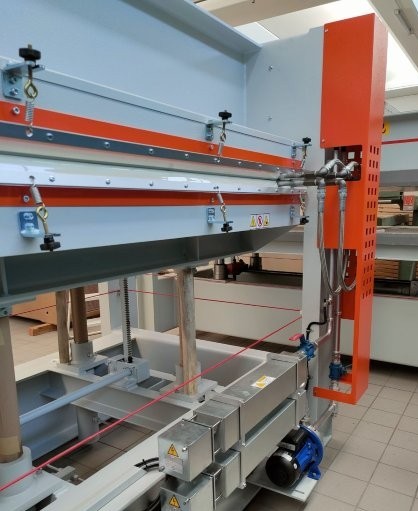

*Hydraulics: Multi-cylinder system for parallel closing and even pressure distribution

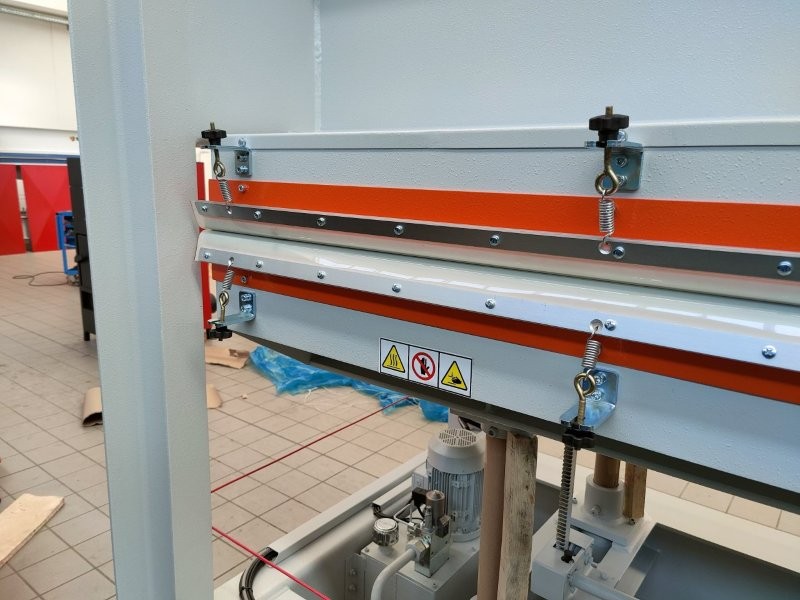

*Safety: Safety edge / emergency stop pull cord and two-hand safety control
*Manufacturer: Umur Makina Ankara, Turkey
*Distributor: Mischi Gargazon

Key Features & Benefits

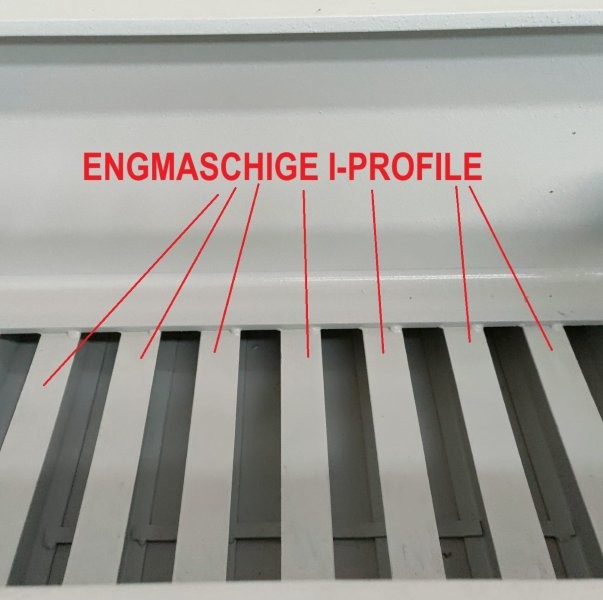

*Torsionally rigid chassis design: The computer-designed steel frame minimizes deflection under full load and ensures consistent pressing results across the entire surface.
*Torsionally rigid chassis design: The computer-calculated steel frame minimizes deflection under full load and ensures uniform pressing results across the entire surface. *Homogeneous temperature control: The optimized heating element prevents cold spots on the panel and guarantees fast, uniform curing of the adhesive.
*Economical continuous operation: High energy efficiency, short cycle times, and easy access to all hydraulic and electrical components for maintenance.

Applications

* Pressing real wood veneers onto wood-based panels (MDF, particleboard, blockboard)
* Bonding of HPL, CPL, and laminated wood products
* Production of infill panels and laminated panels in door and window manufacturing
