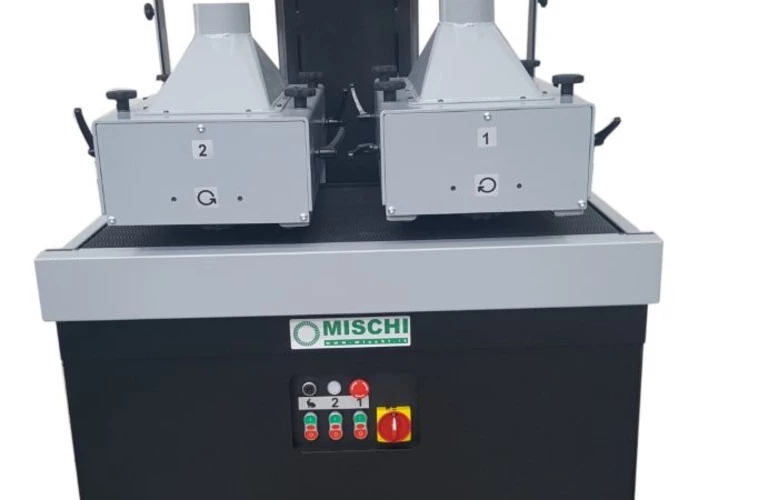

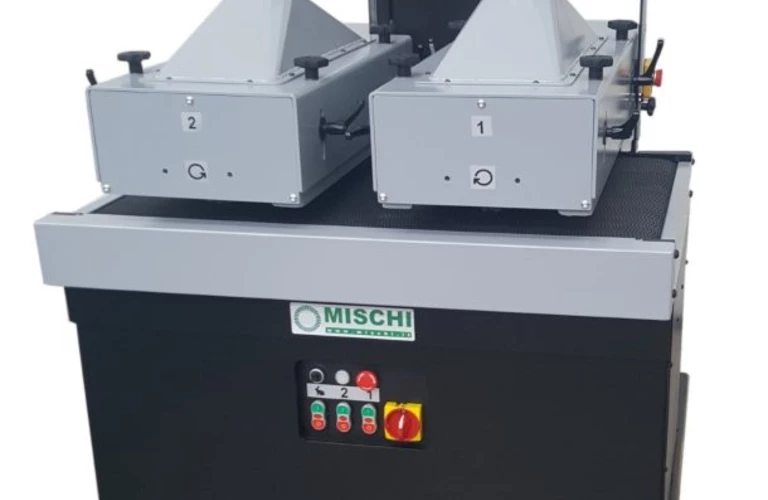

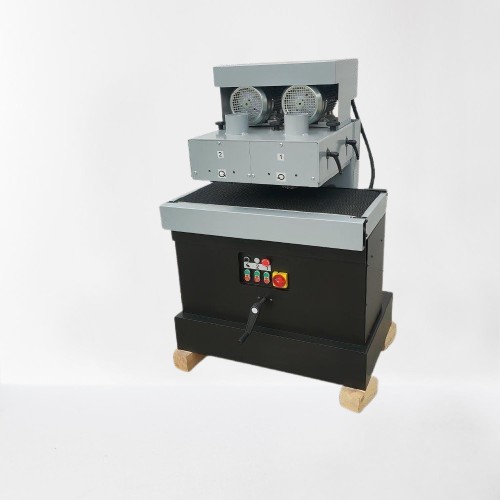

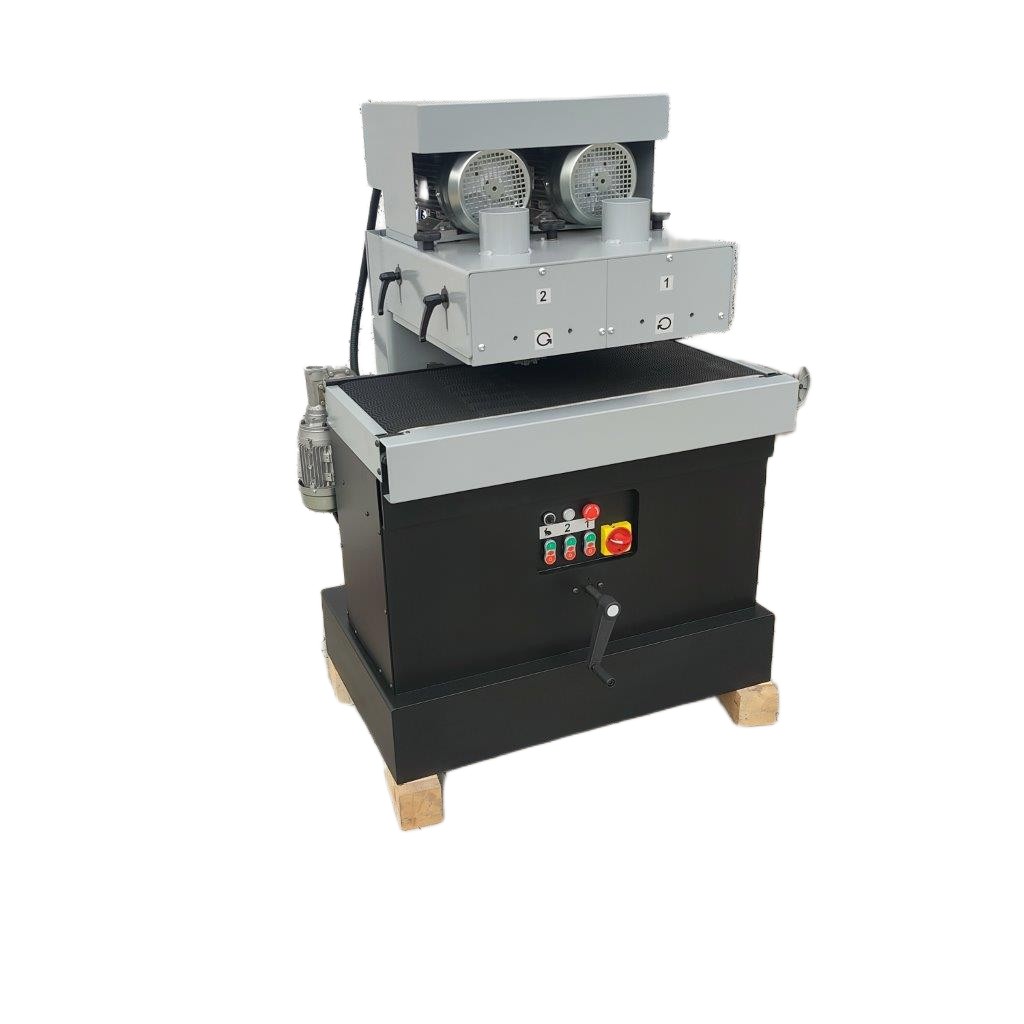

Brushing machine
Brush width 650 mm
Max. brush height approx. 350 mm
2 motors 4 kW (5.5 hp)
2 brushes D 150 mm K60+80

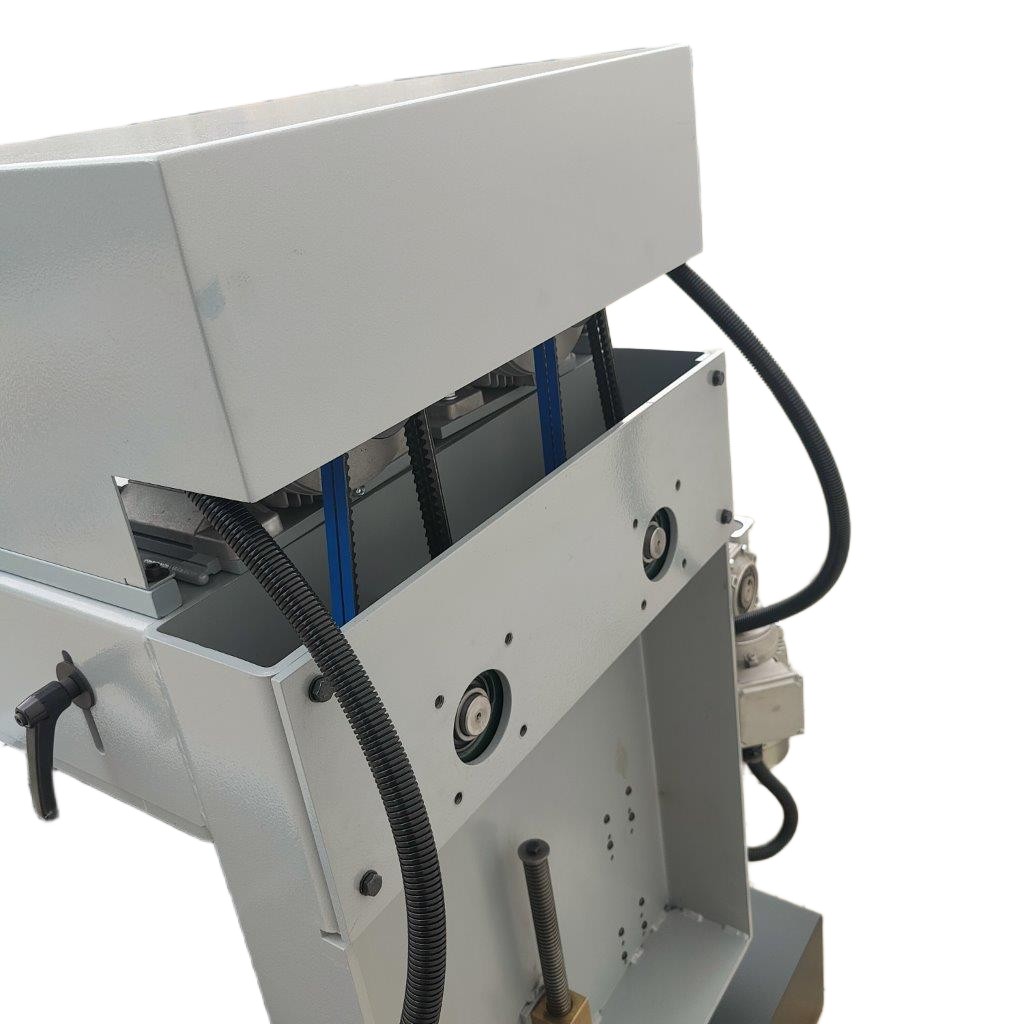

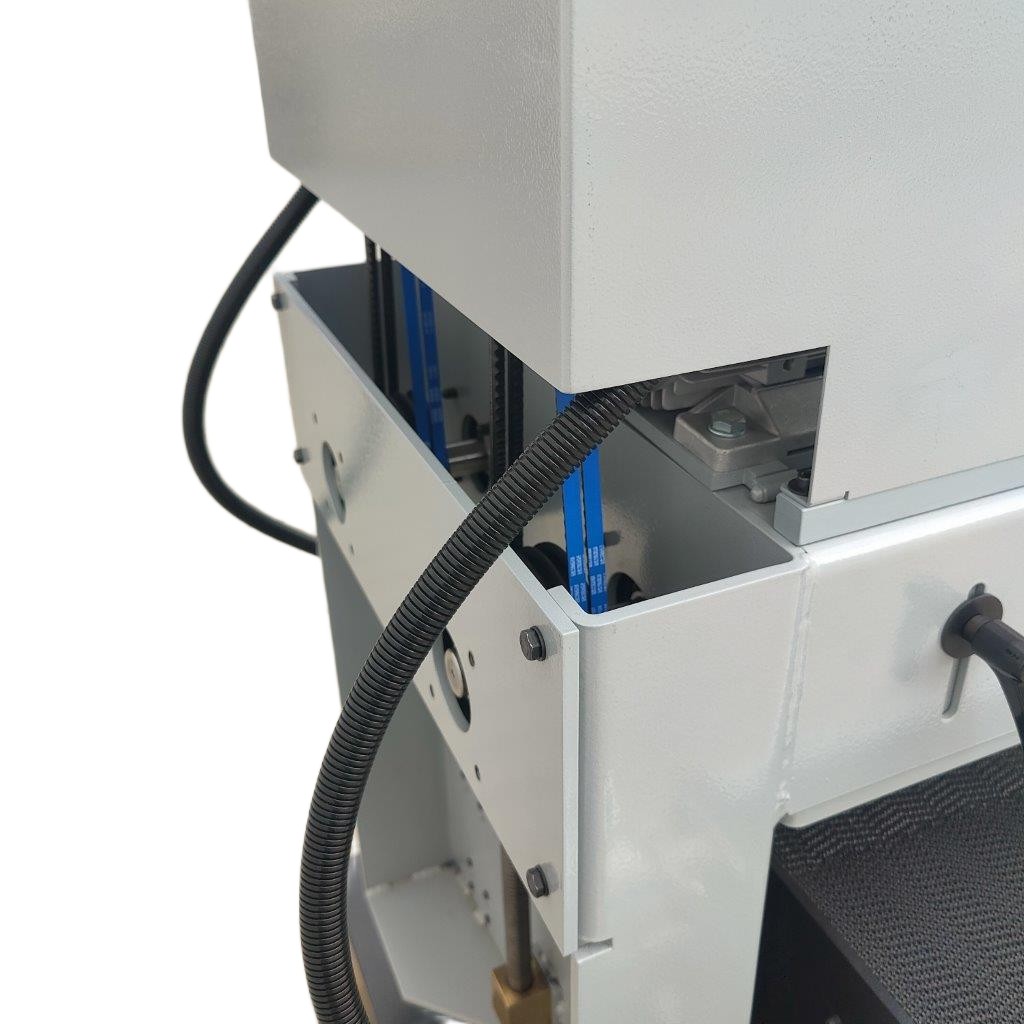

Feed belt guided by 2 belts

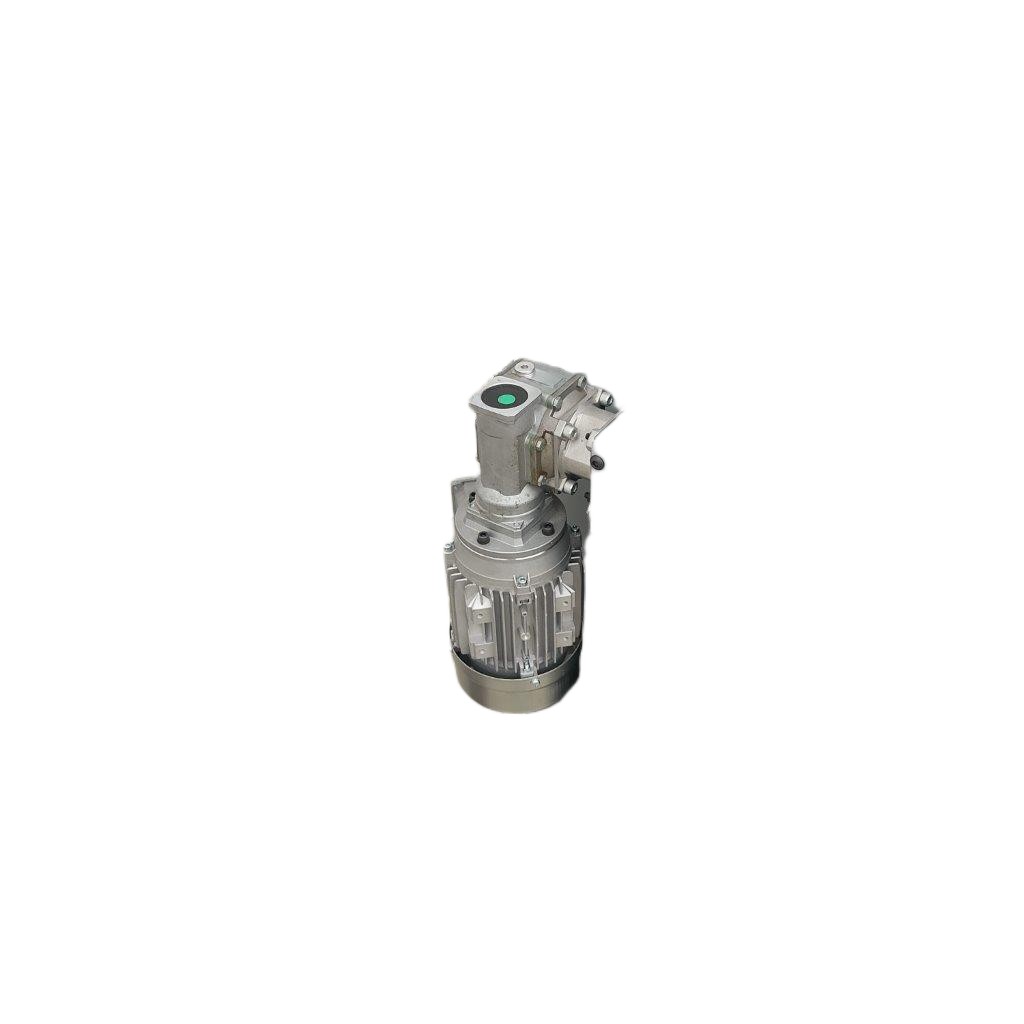

variable feed via inverter
V400/50
€ 12.500
Brush width 650 mm
Max. brush height approx. 350 mm
2 motors 4 kW (5.5 hp)
2 brushes D 150 mm K60+80 incl.
Feed belt guided on 2 belts
Infinitely variable feed via inverter
V400/50

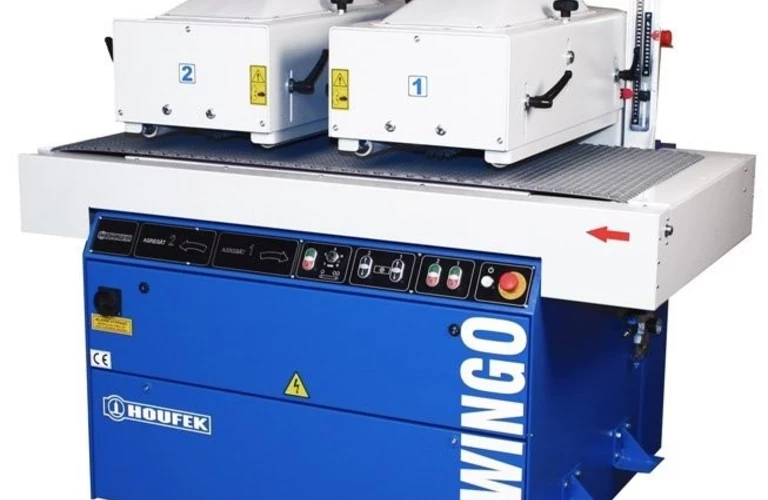

Houfek brushing machine BB600
Brush width 600 mm
Weight 900 kg
Diameter 120-300 mm
Brush bore 40 mm
Spindle speed 850 rpm
Machine dimensions 170 x 120 x h175 cm
Motors 2 x 4 kW/5.5 hp
Feed speed 4.5 + 9 m/min

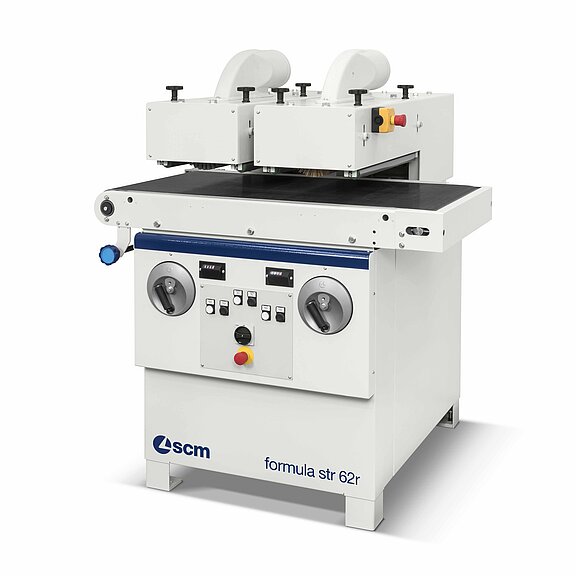

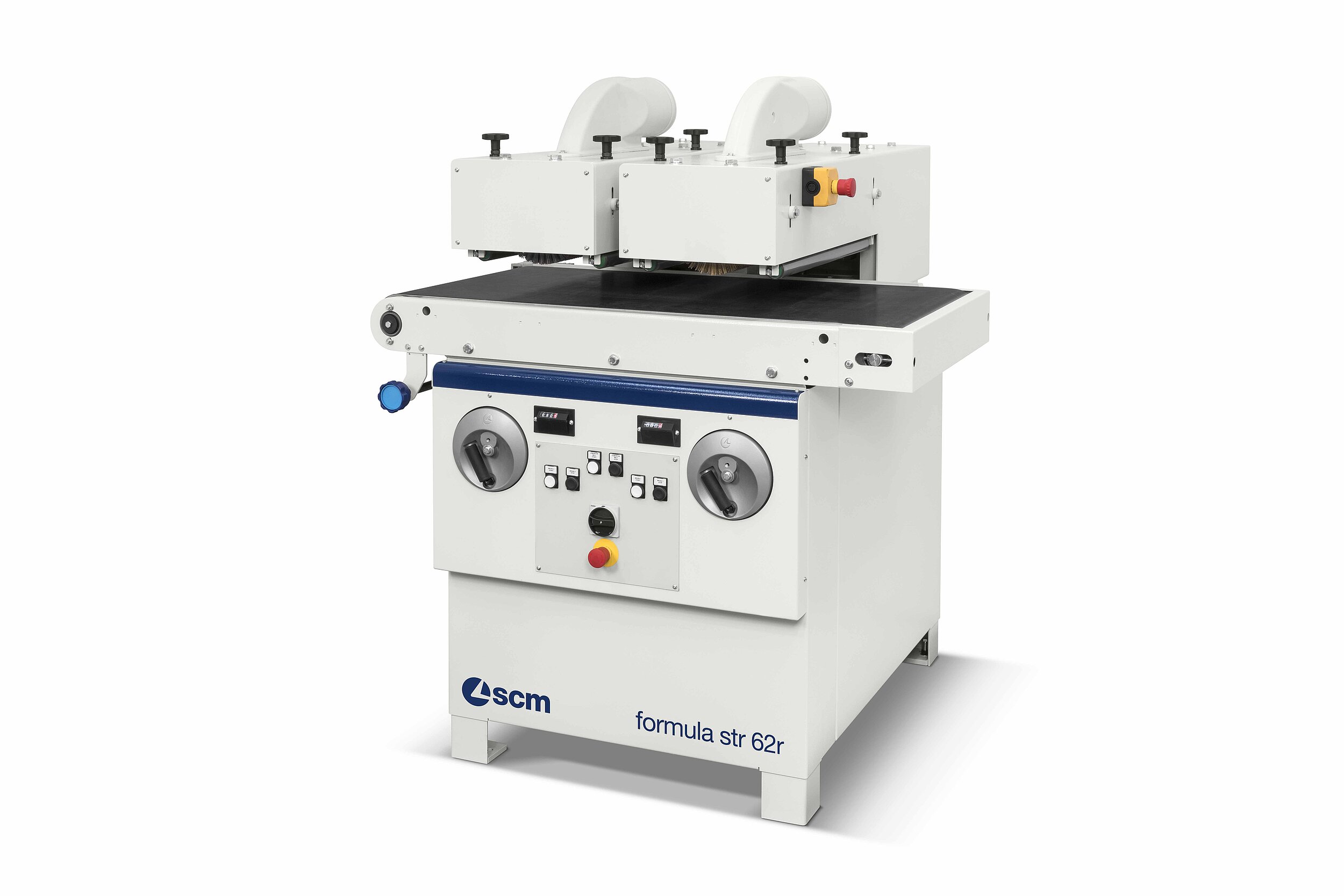

scm group brushing machine STR62R
Arbeitsaggregate 2 oder 4 Stück
Arbeitsbreite 600 mm
Max. Arbeitshöhe 300 mm
Motorleistung je Aggregat 4 kw/5,5PS
Vorschubmotor 0,37 Kw
Absaugung 2 x D150
Bürstgeschw. Umd/min 1500
Vorschubgeschw. 3 bis20 m/min
Bürstendurchmesser 190 mm
Nettogewicht 750
Abmessungen 1300x1200xh1550mm
Technical Description & Specifications
Equipment: Brushing and Structuring Machine
Manufacturer: SCM Group
Model: STR 32 R
sale by MISCHI KURT
Overview
The SCM Group STR 32 R is a high-performance industrial brushing and structuring machine engineered for processing wood surfaces, veneers, and panel materials. It is designed for heavy-duty applications including structuring, antiquing, smoothing, and denibbing.
Technical Specifications
Working Width: 300 mm – 320 mm
Max. Workpiece Height: 200 mm
Processing Units: 2 independent brushing units
Feed System: Continuous conveyor belt with variable speed control
Total Weight: approx. 650 kg – 750 kg (varies depending on specific frame configuration and installed options)
Drive System & Motor Powers
The machine features independent electric motors for each operating unit to ensure maximum torque and precise surface processing:
* 1st Brushing Unit (Structuring / Heavy Removal): 3.0 kW – 4.0 kW motor
* Typically equipped with steel wire or heavy-duty synthetic brushes for deep grain extraction.
* 2nd Brushing Unit (Finishing / Denibbing): 3.0 kW – 4.0 kW motor
* Typically fitted with Tynex, abrasive nylon, or horsehair brushes for surface smoothing.
* Feed Belt Drive Motor: 0.37 kW – 0.55 kW
* Features infinitely variable feed speed adjustment for optimal throughput control.
* Height Adjustment Drive: 0.18 kW – 0.25 kW (motorized thickness adjustment)
* Total Installed Power: approx. 6.5 kW – 8.8 kW
