Automatic planer

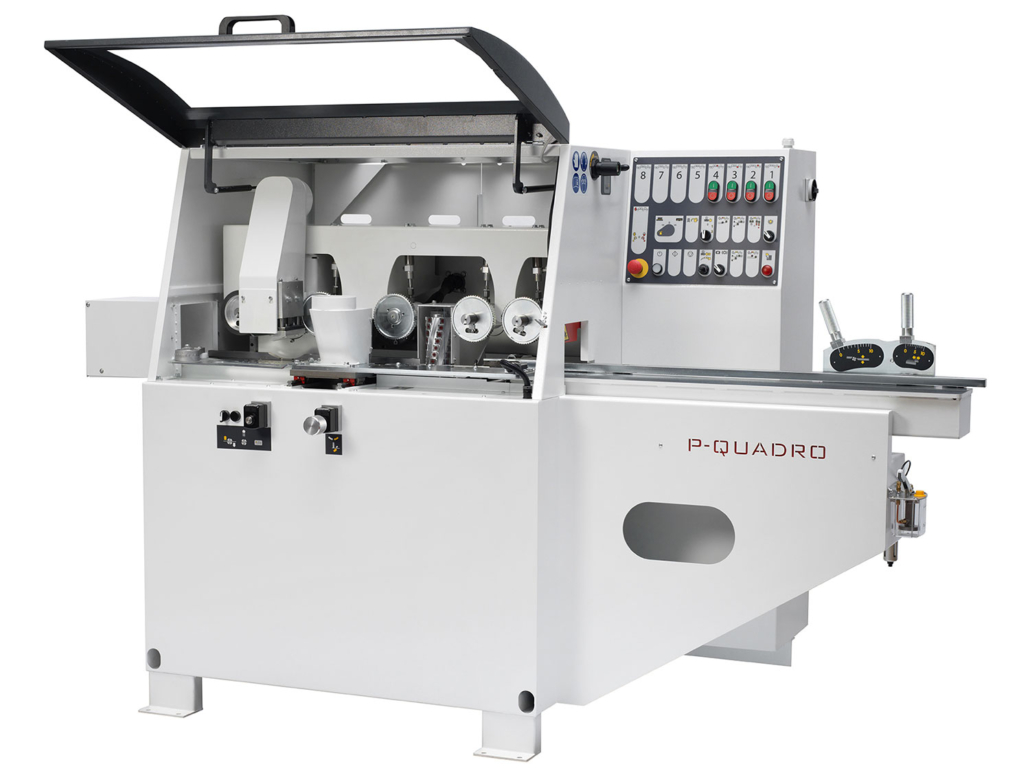

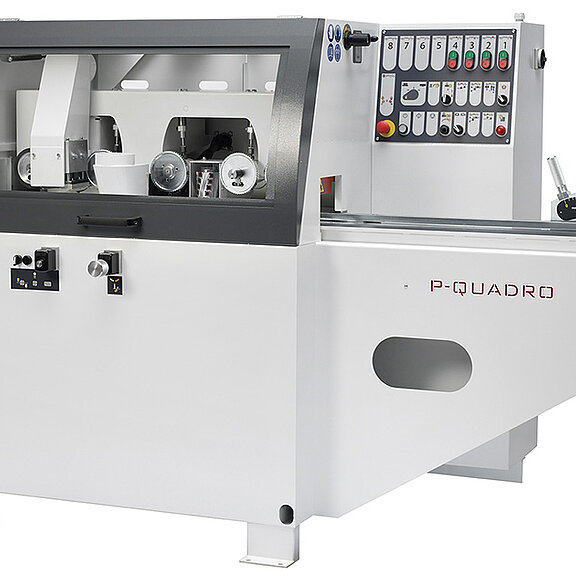

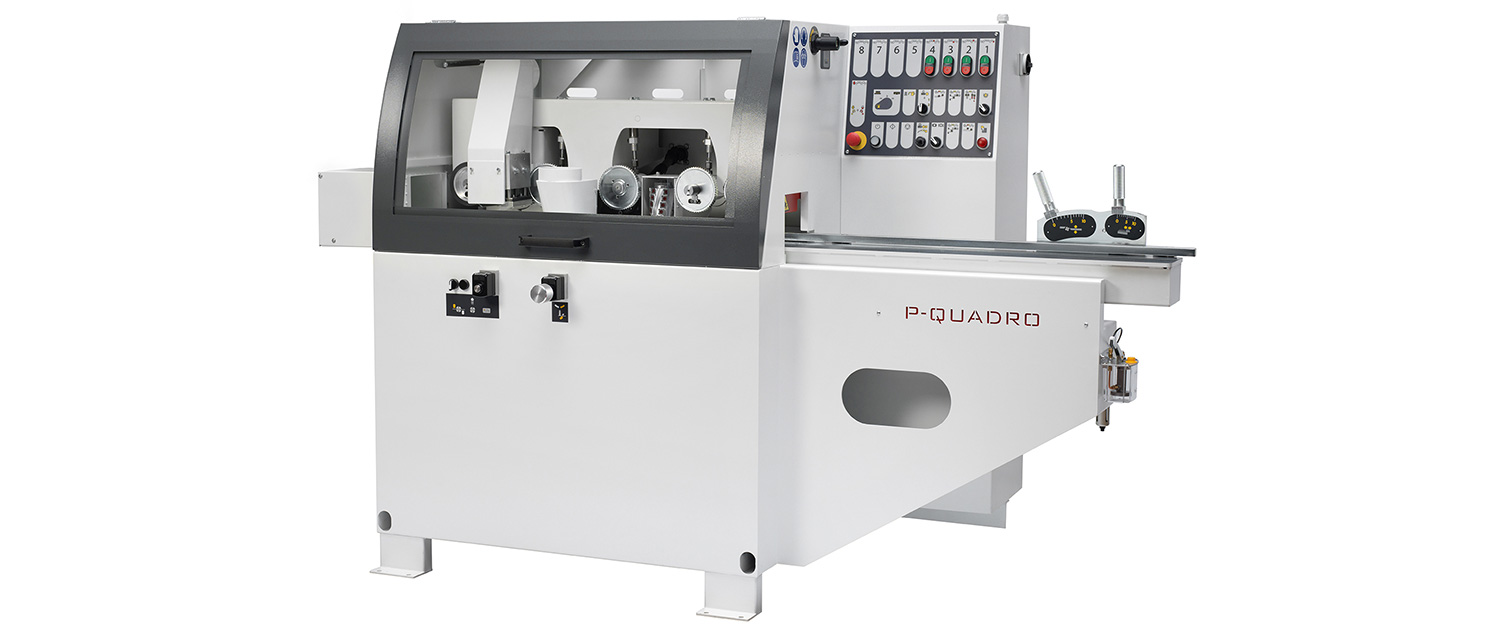

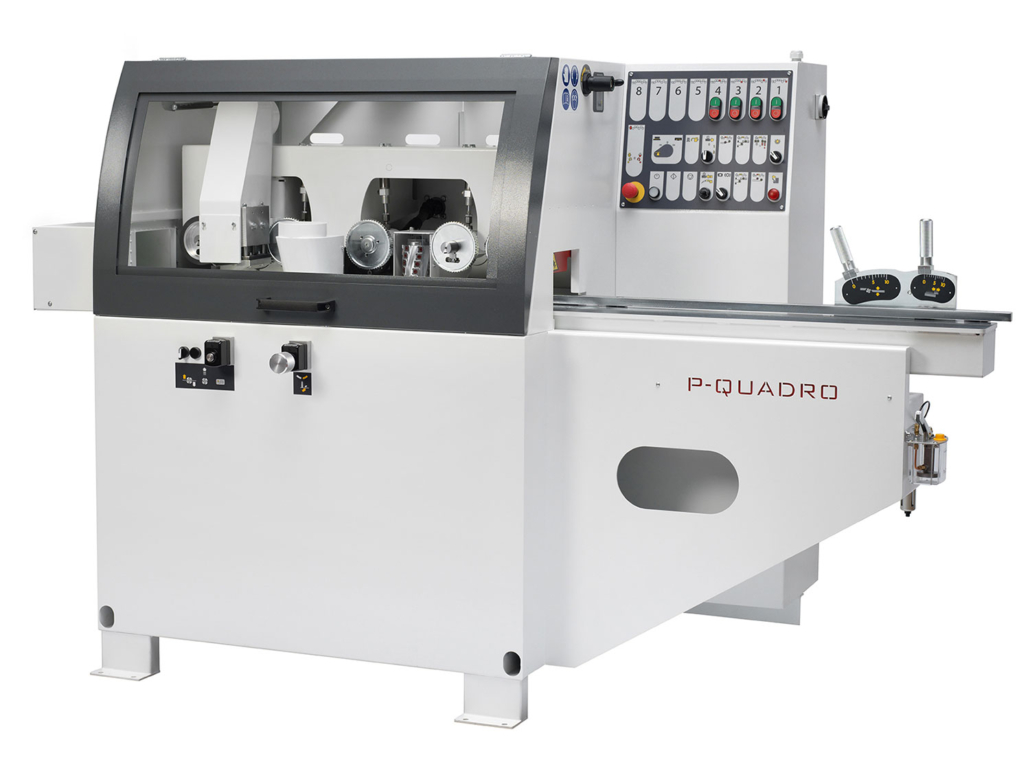

The Futura Woodmac P.Quadro is a compact, automatic four-sided planing and straightening machine designed for artisanal woodworking shops and small woodworking businesses seeking maximum finishing precision in limited spaces.
Product Description

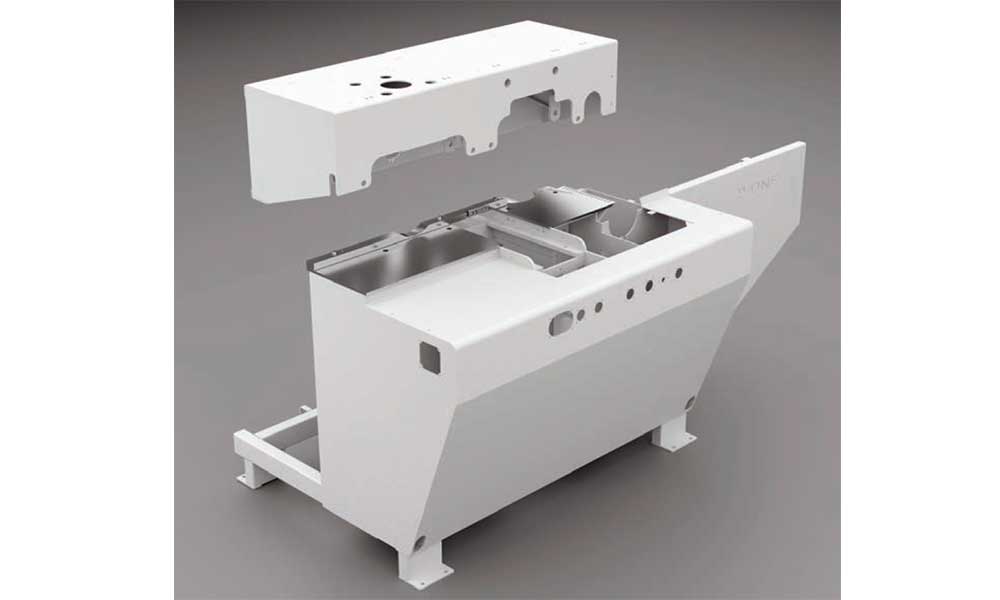

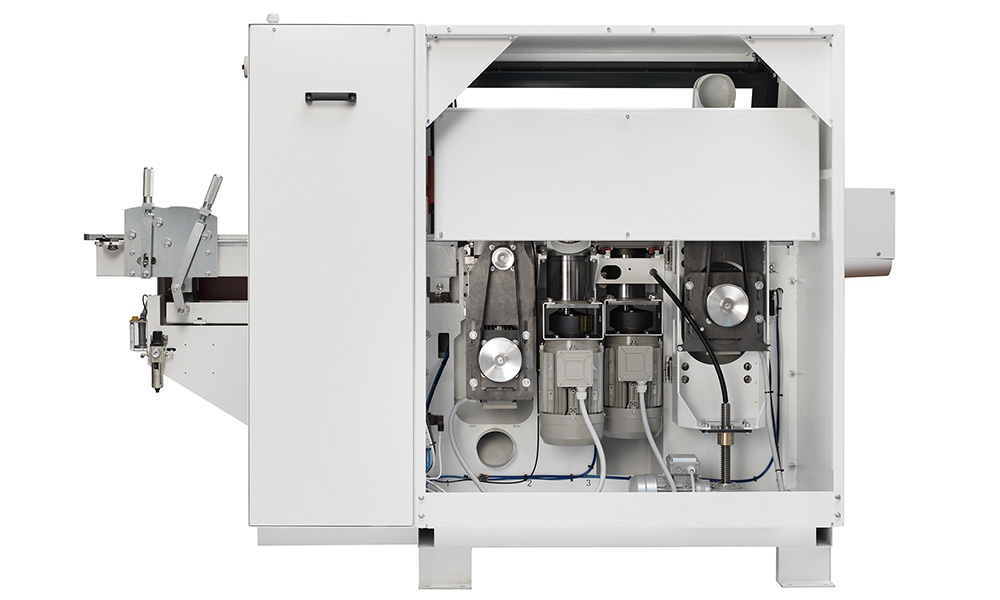

The Futura Woodmac P.Quadro four-sided planing machine guarantees perfect squaring and straightening of wooden elements in a single pass. Ideal for producing window and door frames, slats, bed frames, shutter components, and slats up to a maximum cross-section of 130 x 130 mm, it combines structural rigidity and ease of use. The monoblock structure and independent motorization on each of the four tool spindles ensure maximum cutting power, reduce vibration, and optimize energy consumption.
Main Technical Data

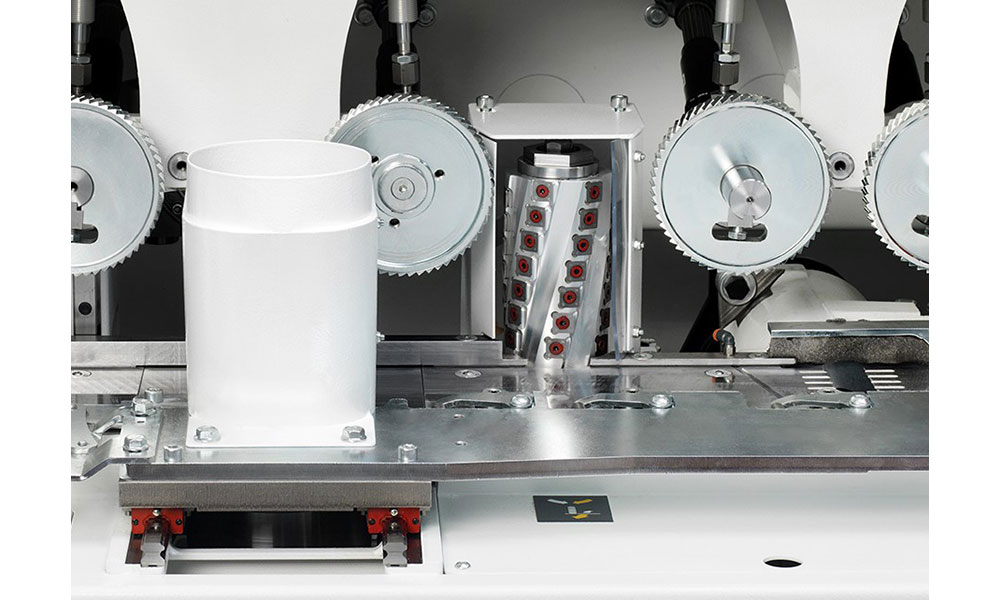

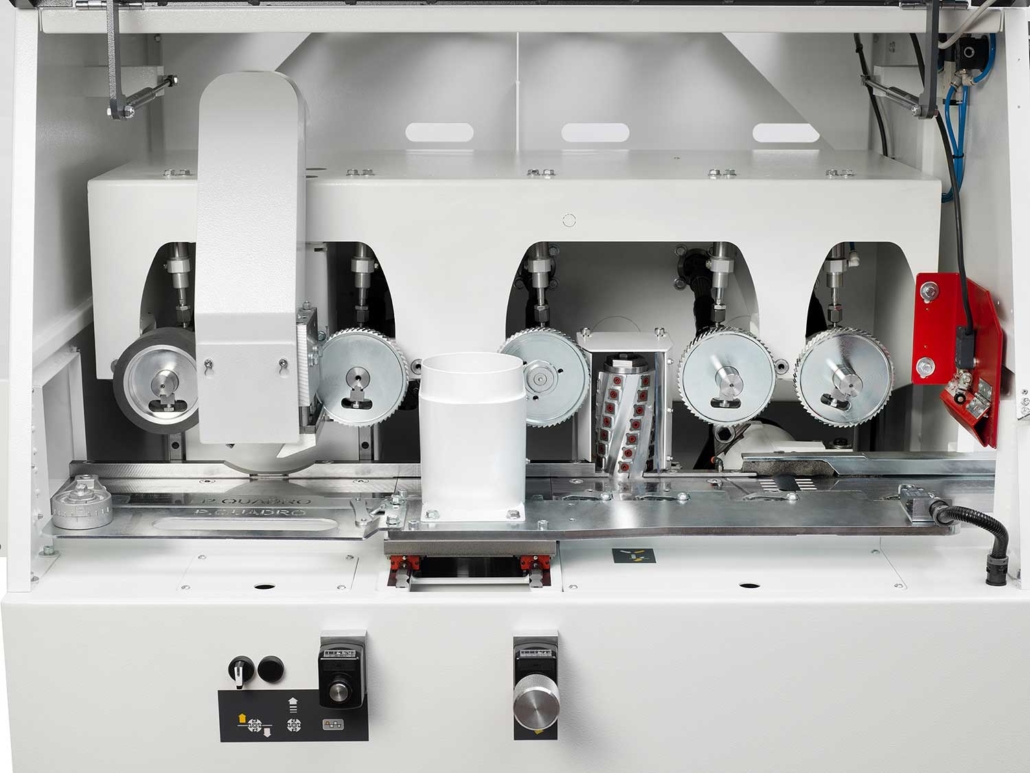

*Operating Spindles 4 spindles (Bottom, Right, Left, Top) with independent motors
*Maximum working section 130 mm (width) × 130 mm (height) |
*Minimum working section 25 mm (width) × 8 mm (height) |
*Infeed table length 2,300 mm
*Shaft rotation speed 6,000 rpm
*Tool shaft diameter 40 mm
*Shaft motor power 4 kW (5.5 HP) each (standard)

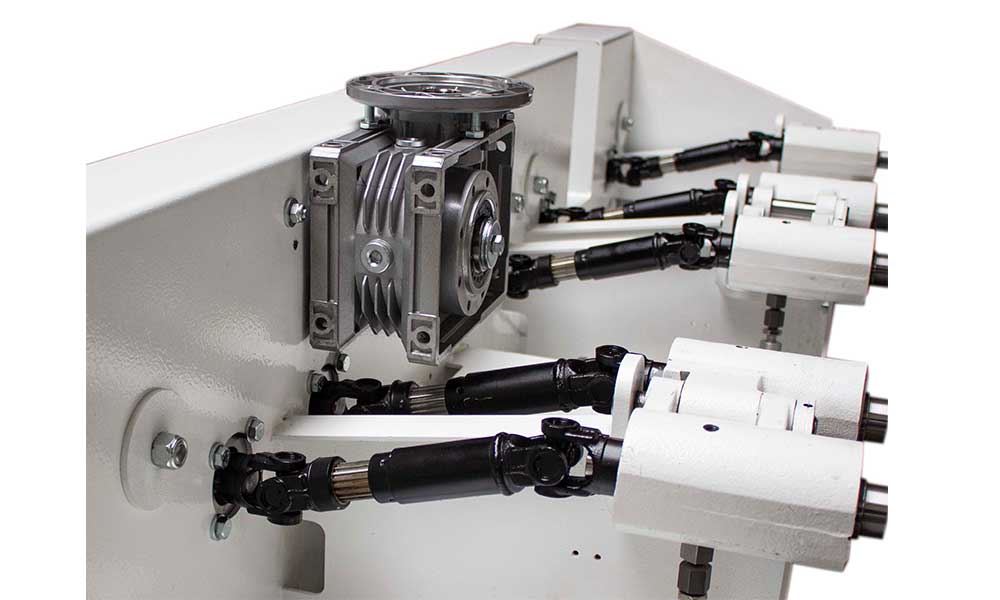

*Workpiece feed Via universal joints and double chain

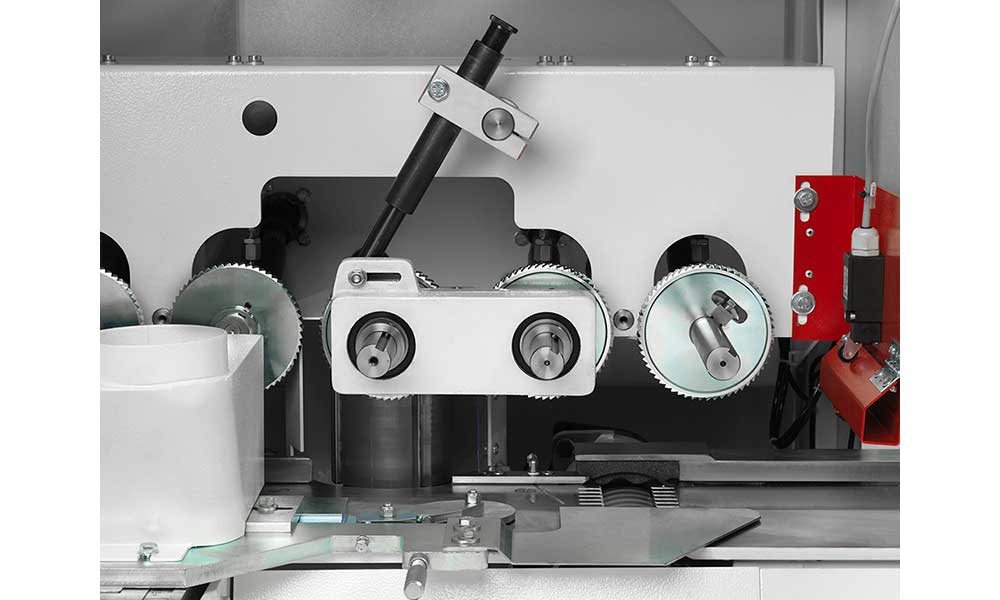

*Roller pressing Adjustable pneumatic |
*Safety regulations CE certification

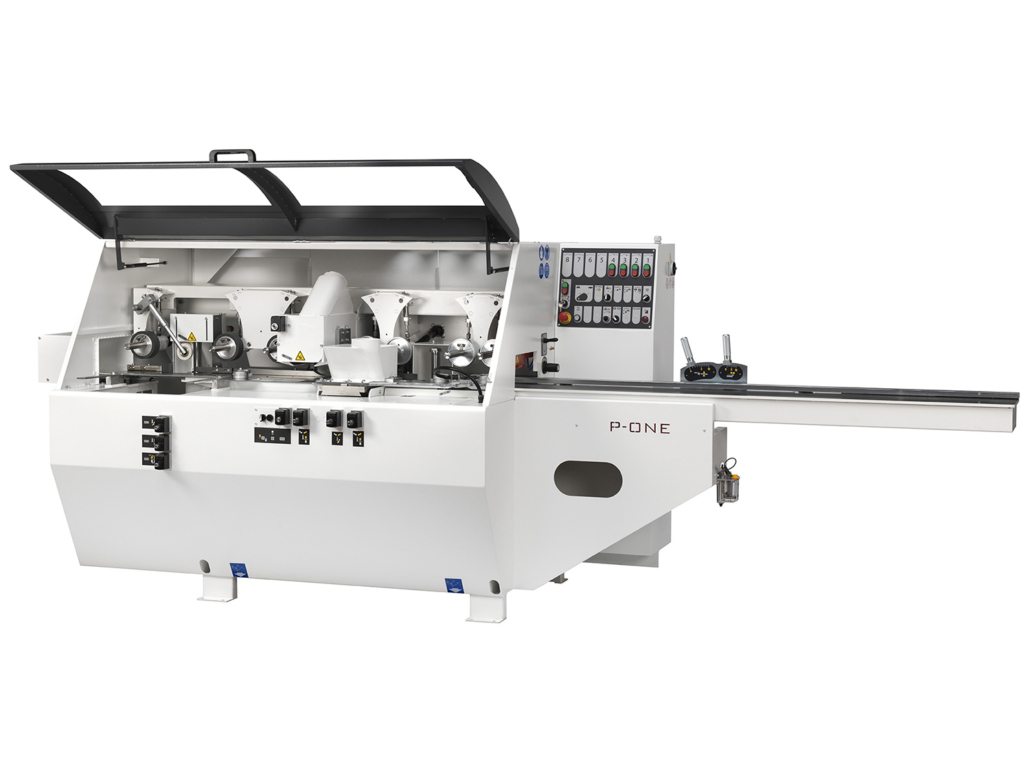

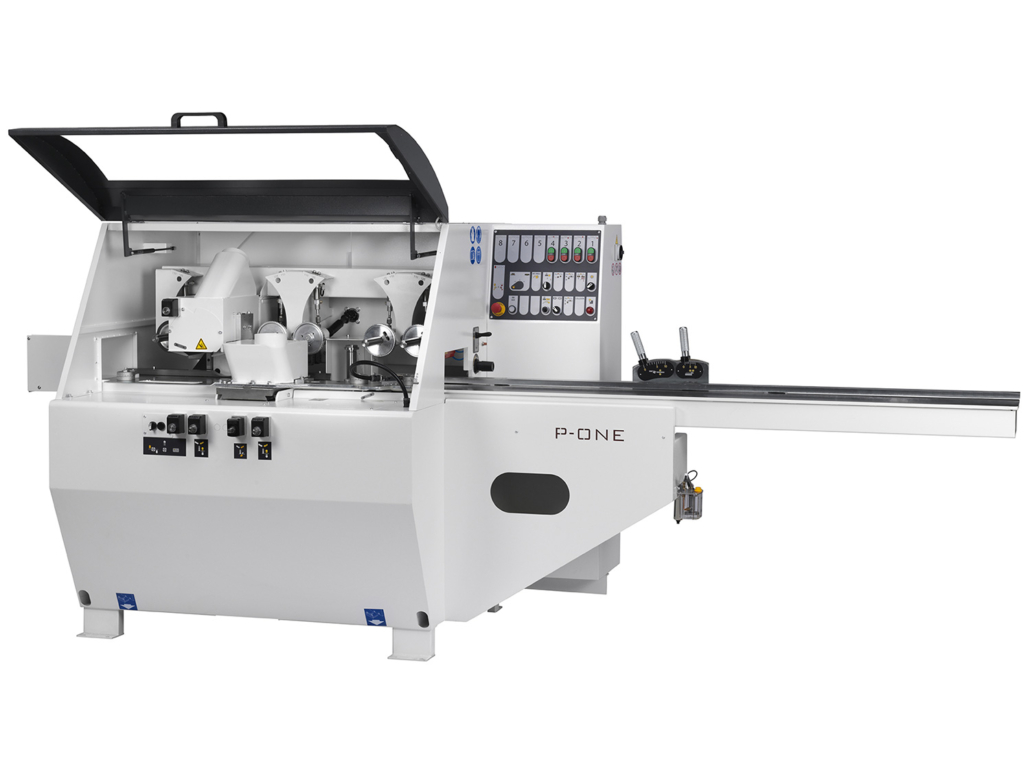

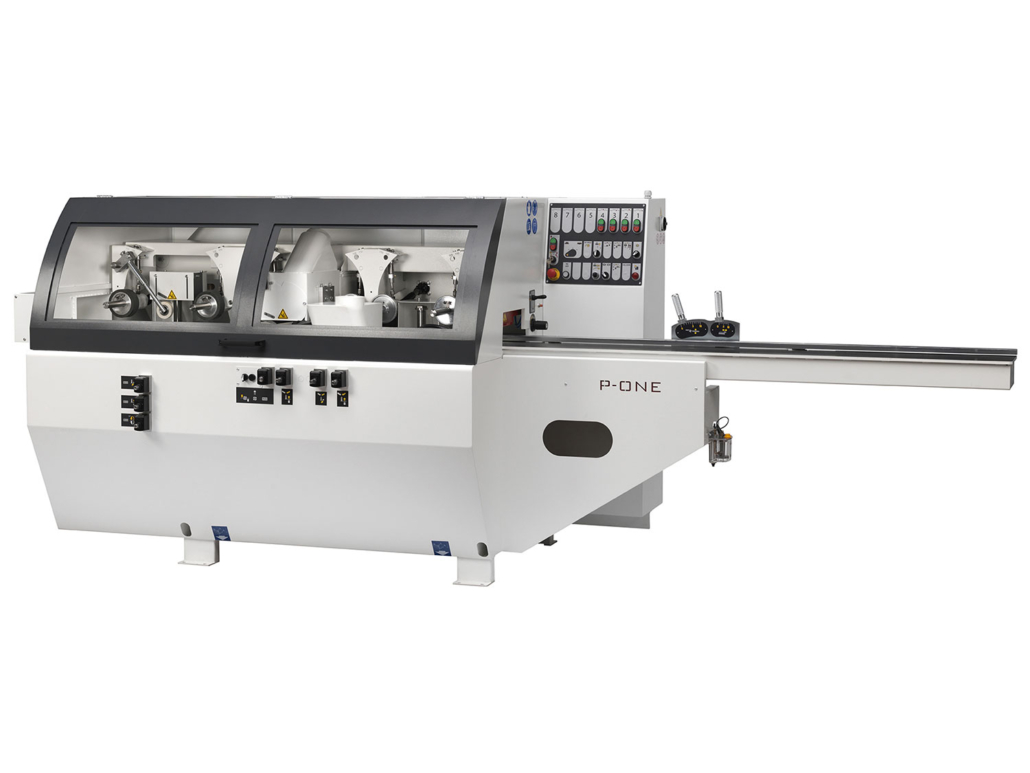

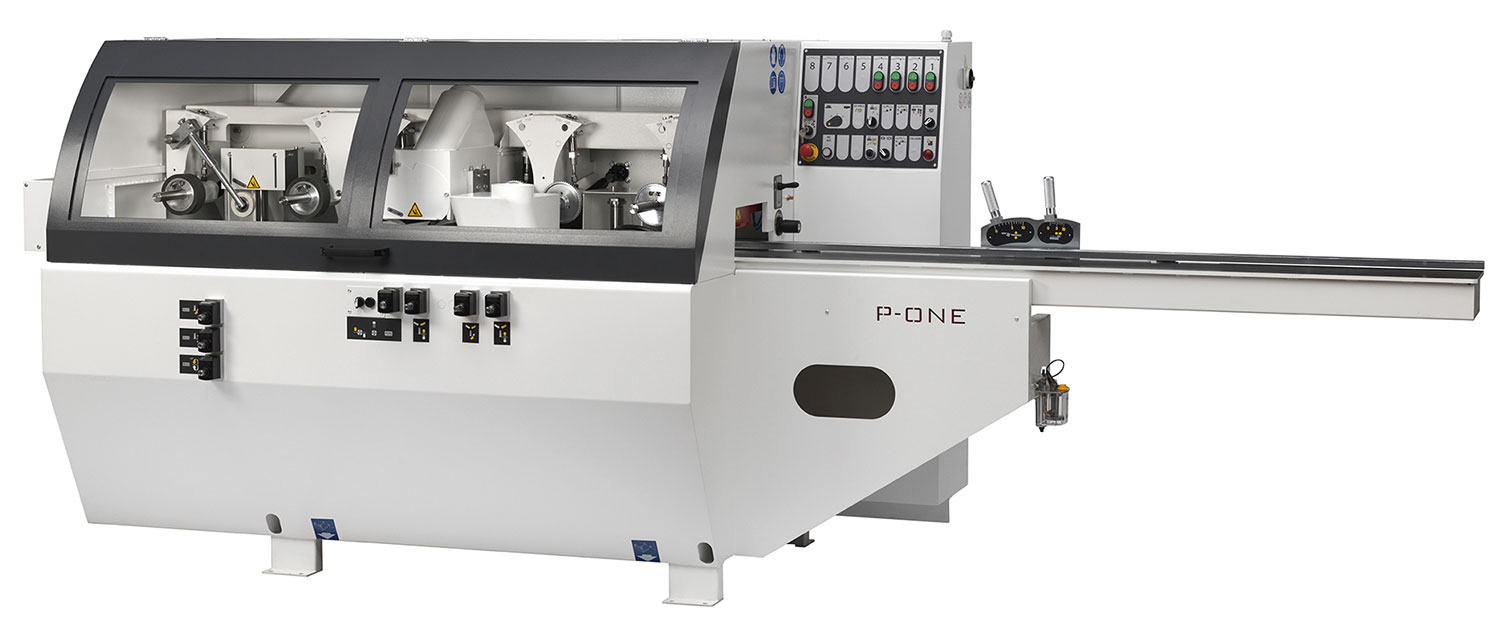

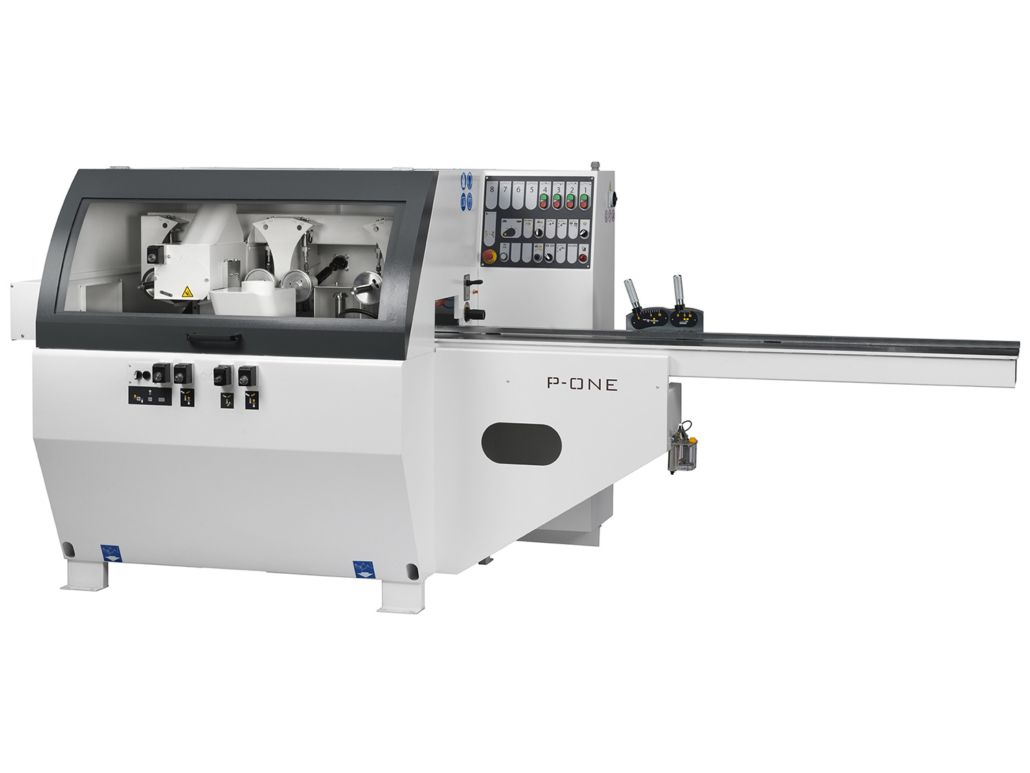

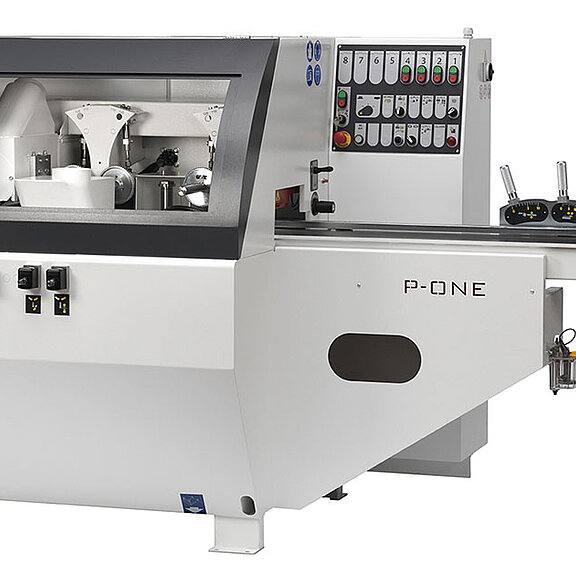

The Futura Woodmac P.ONE is an automatic 4-sided planing and straightening machine designed to precisely meet the needs of artisanal woodworking shops and small-to-medium-sized woodworking businesses. Featuring a highly rigid, single-piece steel structure, the P.ONE ensures maximum operational stability and eliminates vibrations when processing rough or warped workpieces. Thanks to its universal joint drive and pneumatic pressure on the feed rollers, the machine ensures constant and uniform feed of the wood pieces. Each working spindle is driven by an independent motor, allowing for maximum configuration flexibility and energy efficiency. It is the ideal solution for straightening, surface and thickness planing, and basic shaping or profiling in a single pass.
Datenblatt (Technische Daten)
| max working width | 230 mm |
| min working width | 25 mm |
| max working height | 130 mm |
| min working height | 8 mm |
| number of operating shafts | 4 (Sotto, Destra, Sinistra, Sopra) |
| tool shaft diameter | 40 mm |
| shaft rotation speed | 6.000 giri/min |
| table length | 2.300 mm |
| feed speed | 7 – 14 m/min (o variabile con inverter fino a 20 m/min) |
| shaft motor power | 4,0 kW (5,5 HP) – 5,5 kW (7,5 HP) indipendenti |
| independent feed system | cardan joints with pneumatic pressure roller |

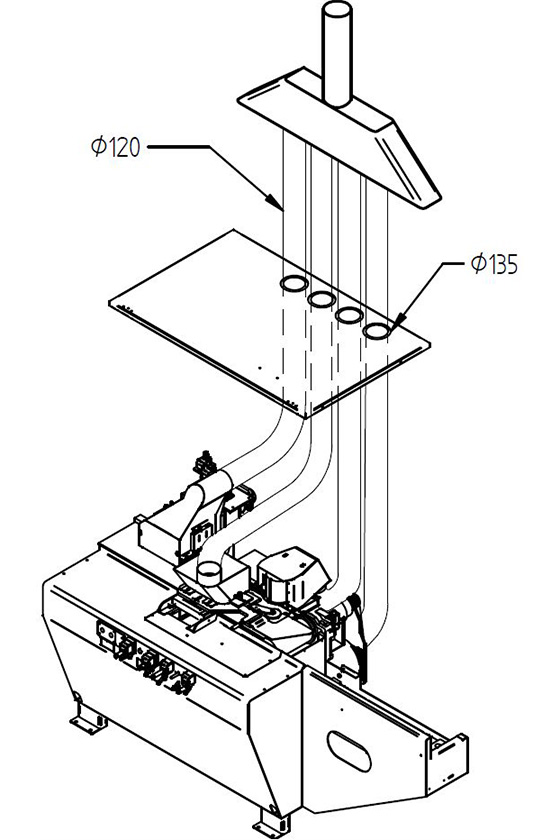

| saw dust suction diameter | 4 x Ø 120 mm |
| approx weight | 1.450 – 1.650 kg |
