Horizontal mortiser
Compact Precision for Woodworking and Dowel Drilling

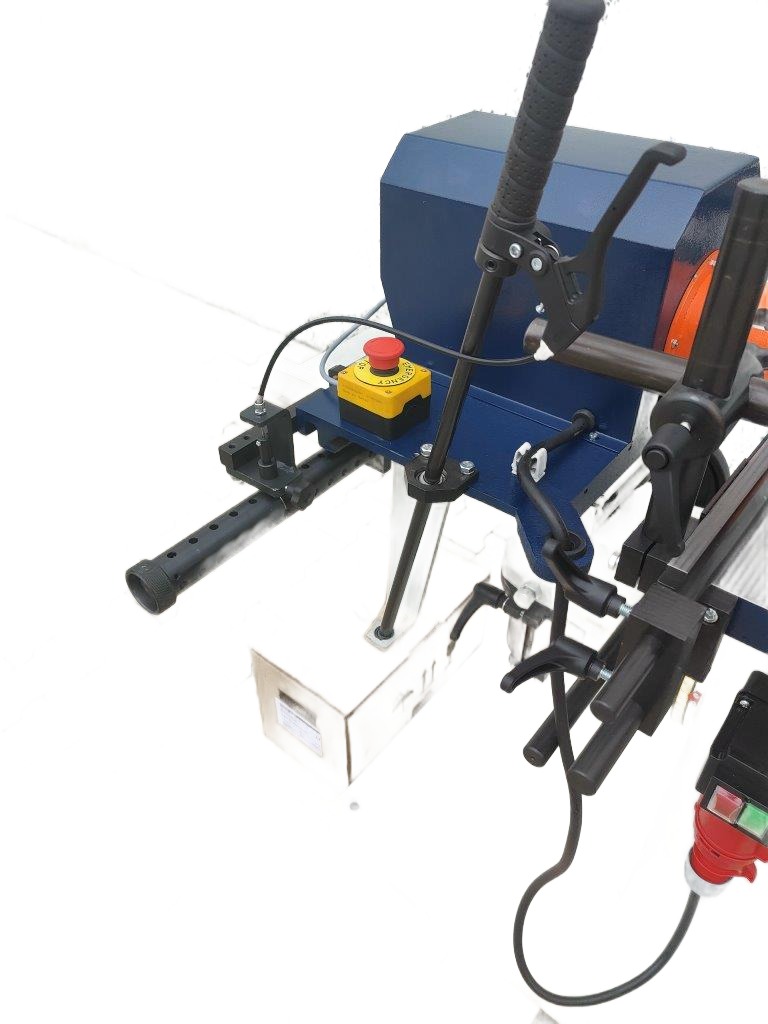

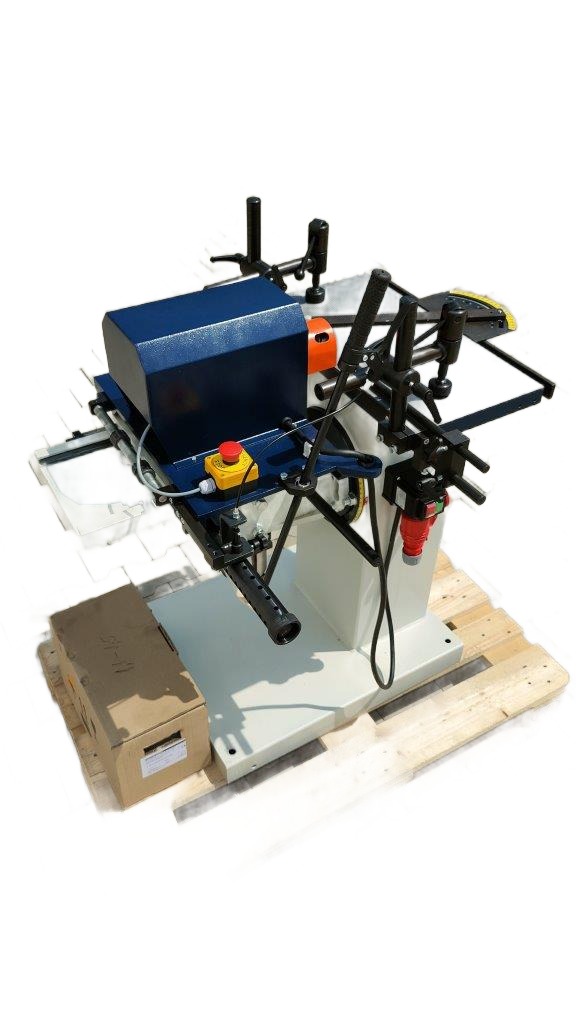

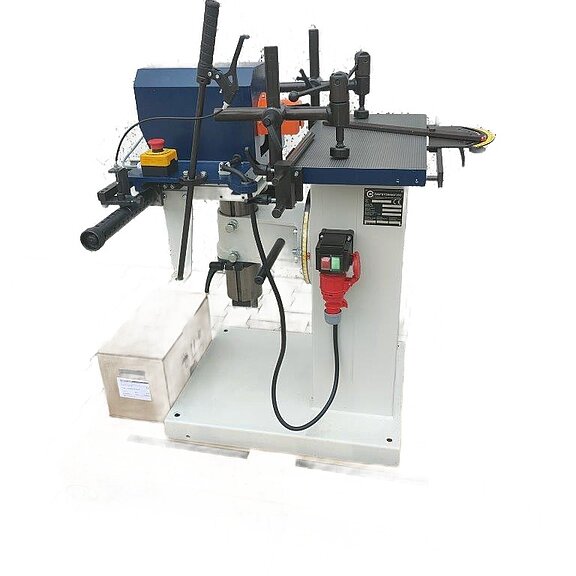

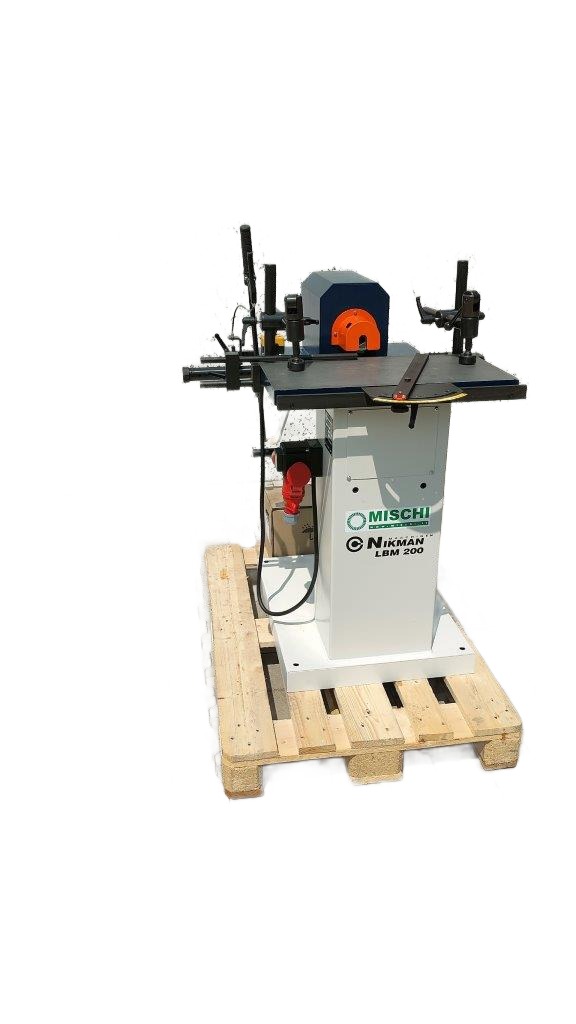

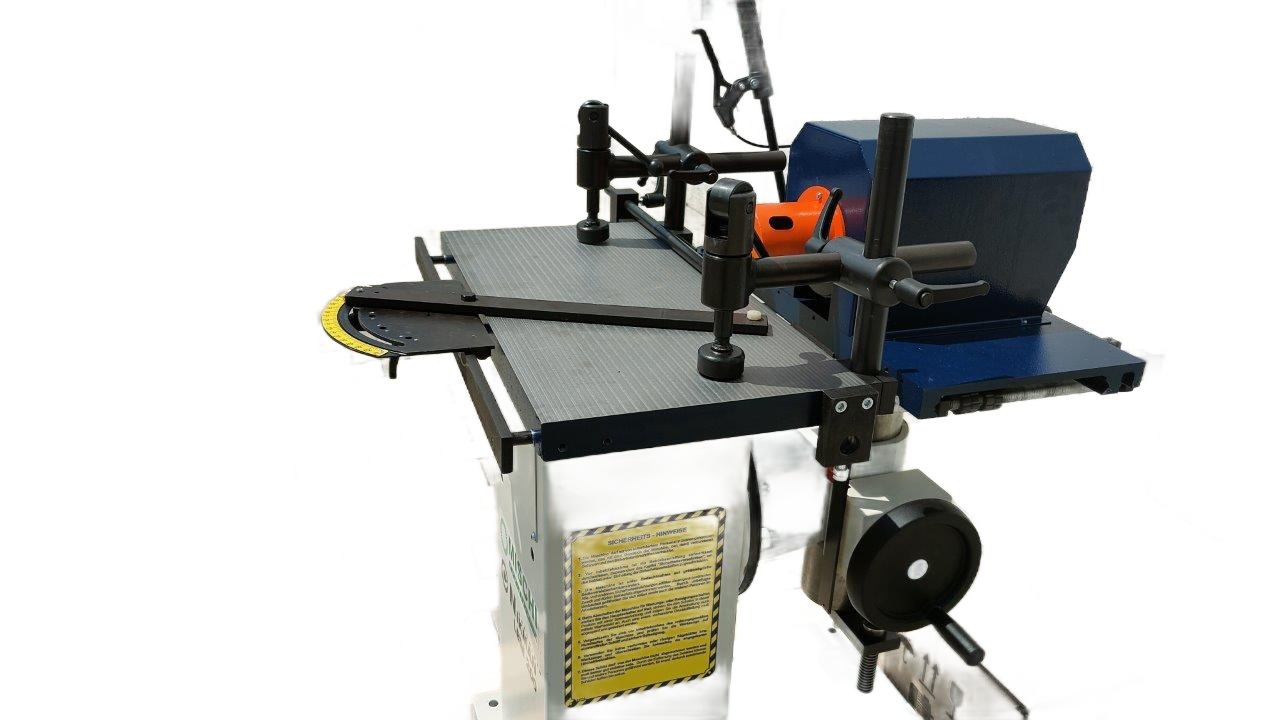

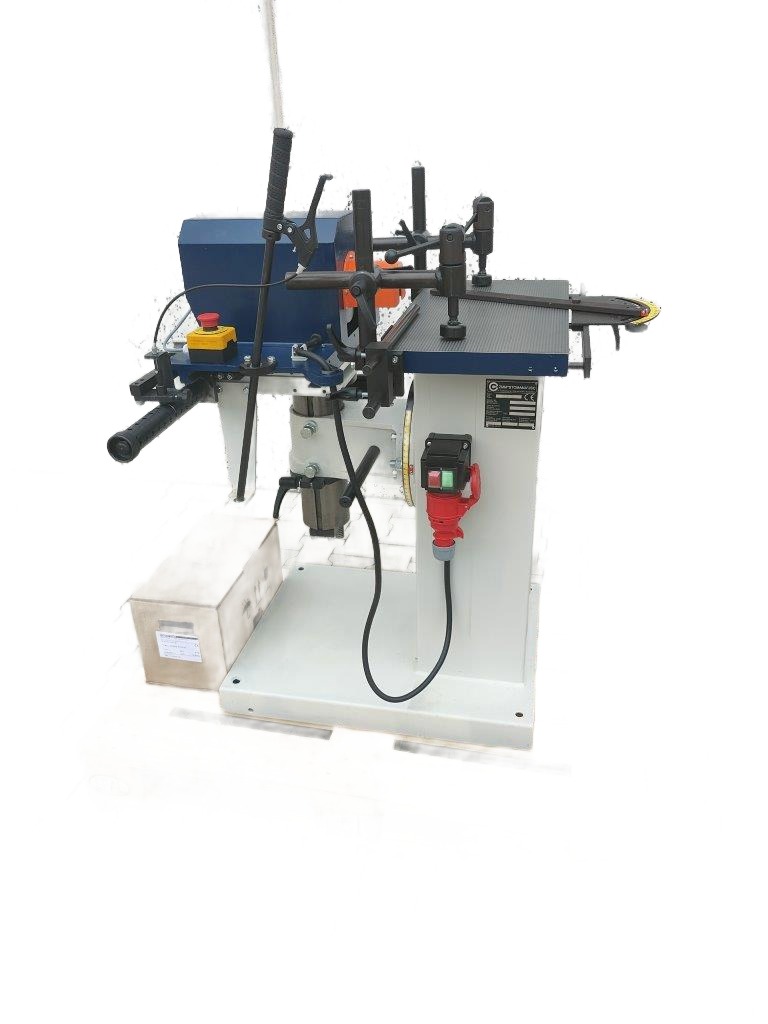

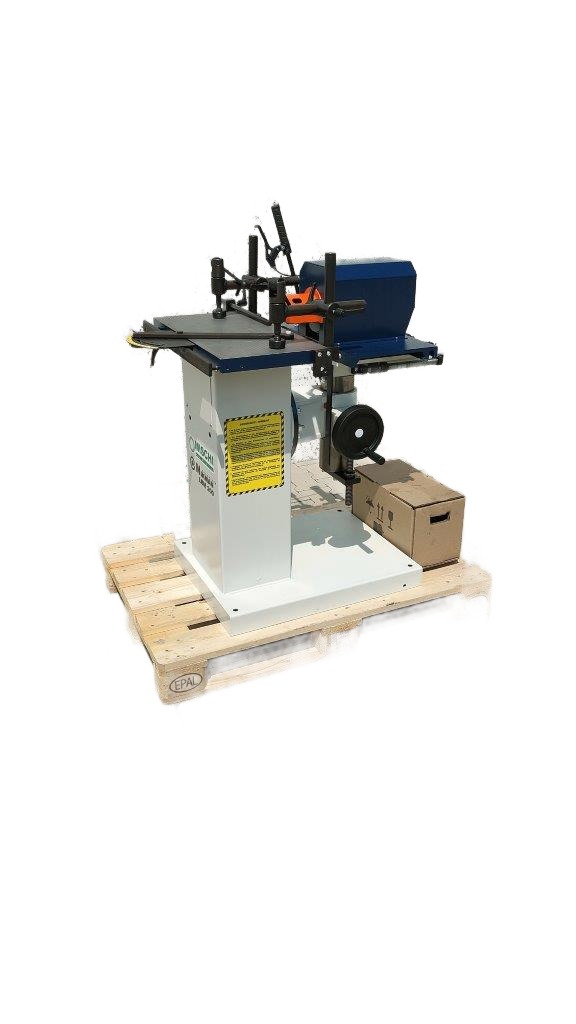

The Nikmann LBS 200 is a versatile and robust slot drill, mortiser for both trade and industry.
Equipped with a drilling unit that swivels 45° to either side, an integrated dowel jig,
and a sturdy cast iron table, the LBS 200 enables precise milling of slots, tenons, and dowel joints.
Technical Specifications
*Drilling Table Size 600 x 320 mm
*Drilling Table Height 870 mm
*Max. Drilling Depth 245 mm
*Max. Drilling Width 205 mm
*Max. Height Adjustment 165 mm
*Swivel Range of Drilling Unit -45° / 0° / +45°
*Motor Speed 2,840 rpm
*Motor Power 2.2 kW (3 hp)
*Total Weight approx. 200 kg
Standard Features & Highlights
*Swivel Drilling Unit (-45° / 0° / +45°):** Ideal for angled drilling and miter joints without repositioning the workpiece.

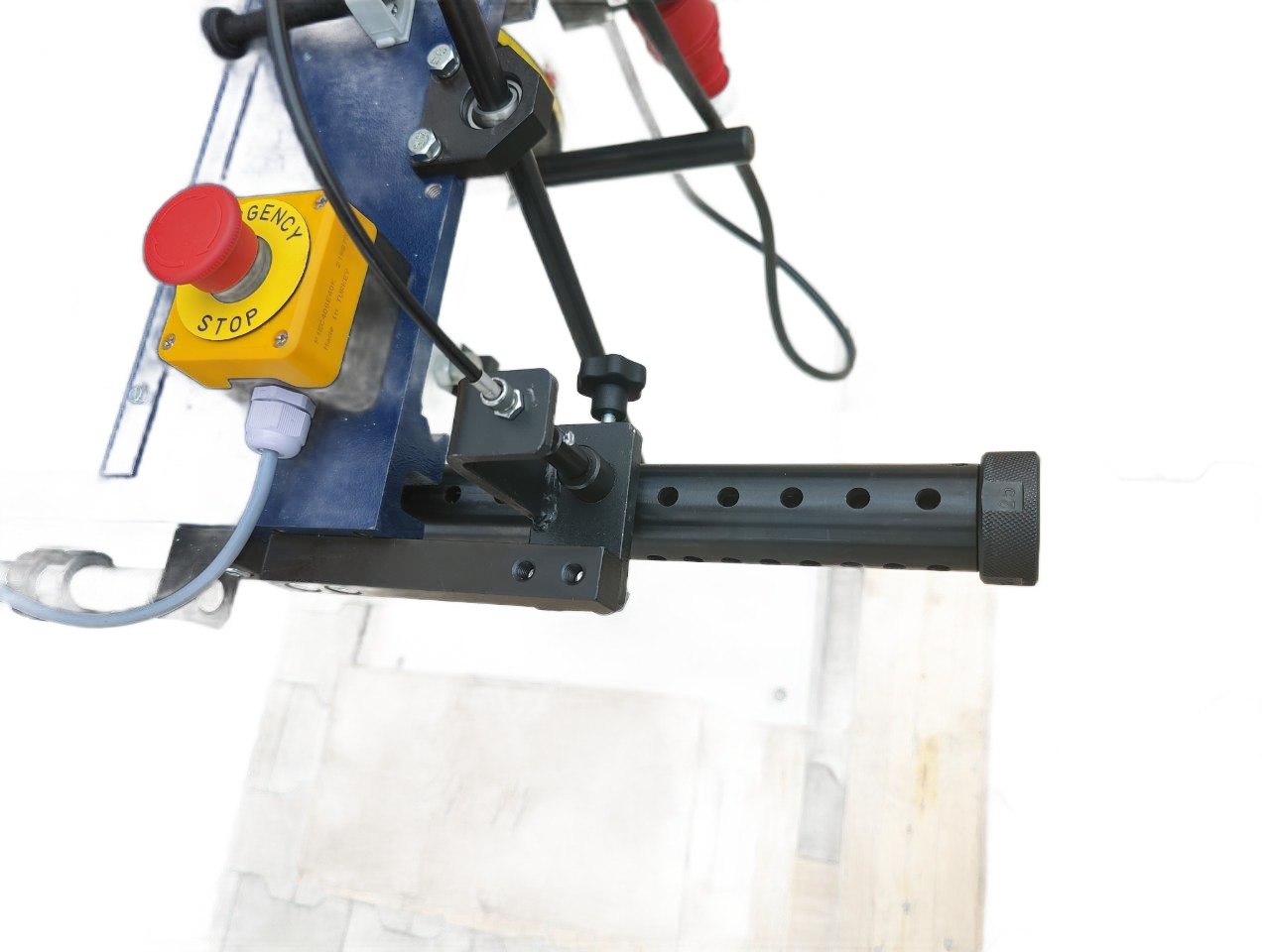

*Integrated Dowel Jig: Precise grid drilling with preset intervals of 16, 22, 25, and 32 mm.
*Workpiece Clamping: Includes two man-multiple clamps for securely clamping wooden components.
*Solid Construction: With a weight of 200 kg, the welded cast iron frame ensures vibration-free operation and precise construction results.
*Optional Accessories
*Chassis: For easy and flexible transport within the workshop.
*Miter Gauge: For precise angle guidance when working with complex cabinet and frame joints.
Precision with ER32 collet chuck
* The MC C10 mortising machine offers maximum precision for solid wood and panel materials. 2.2 kW motor, ER32 collet chuck, 600 x 280 mm worktable. Discover it now!

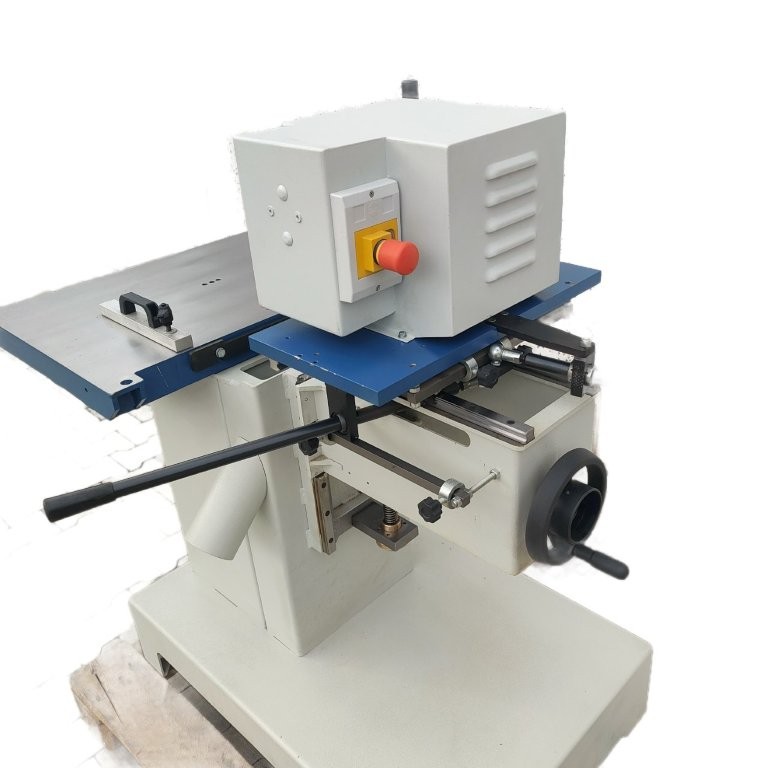

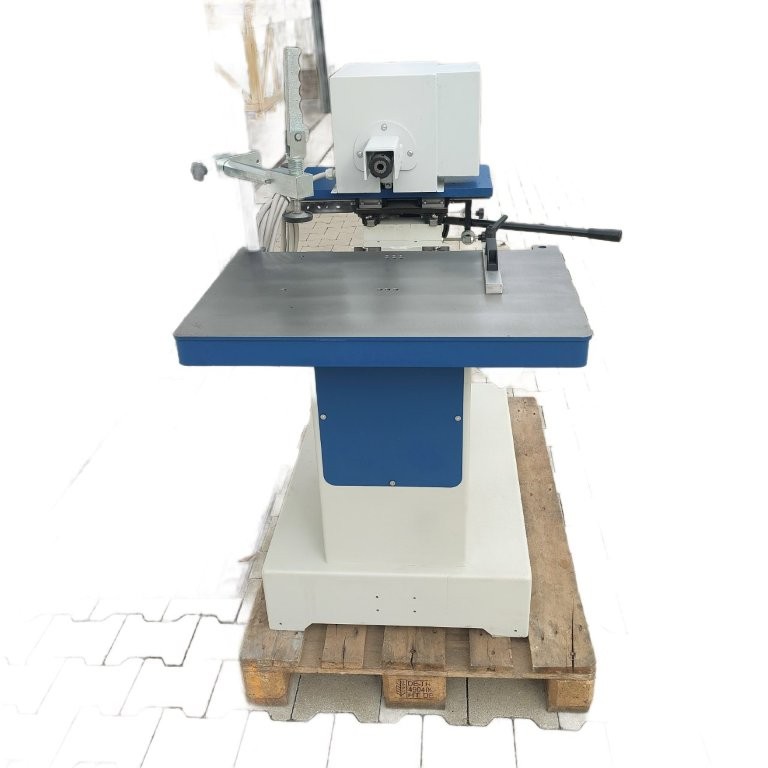

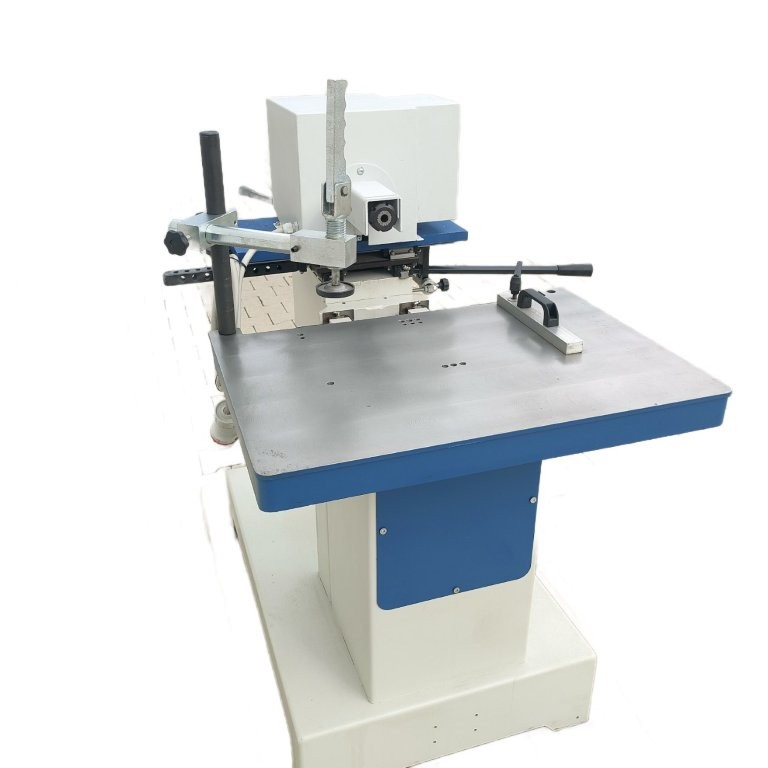

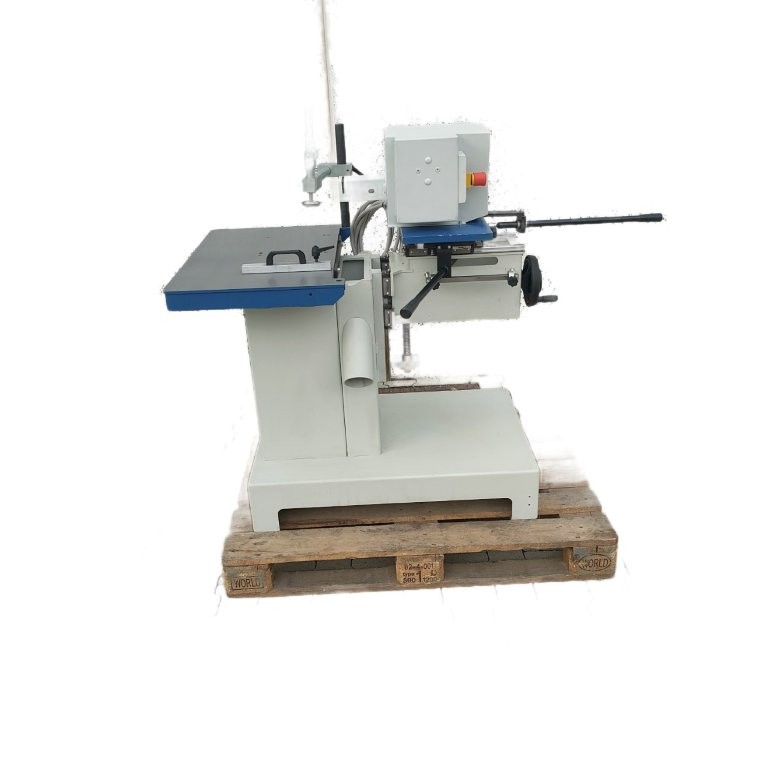

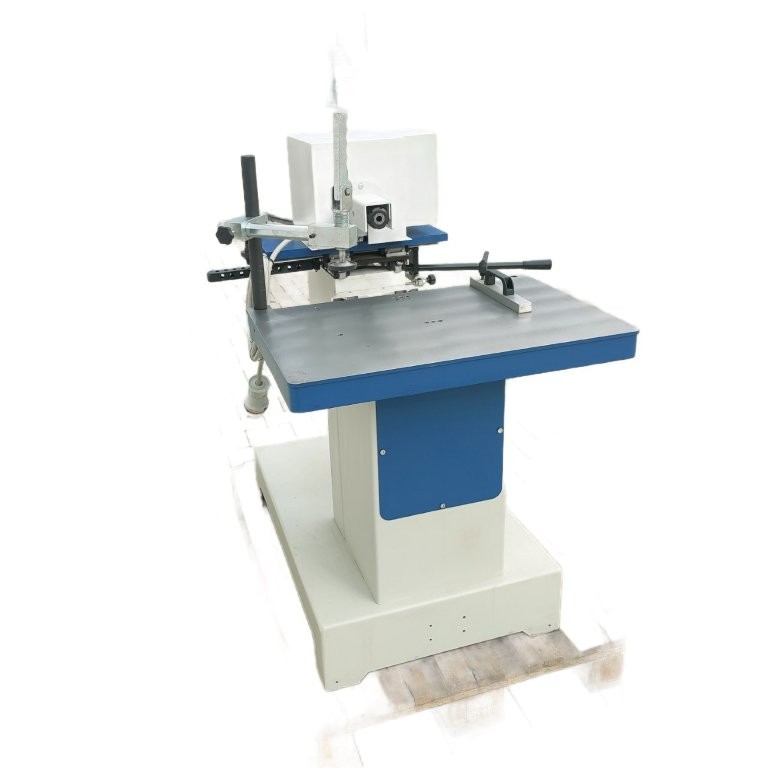

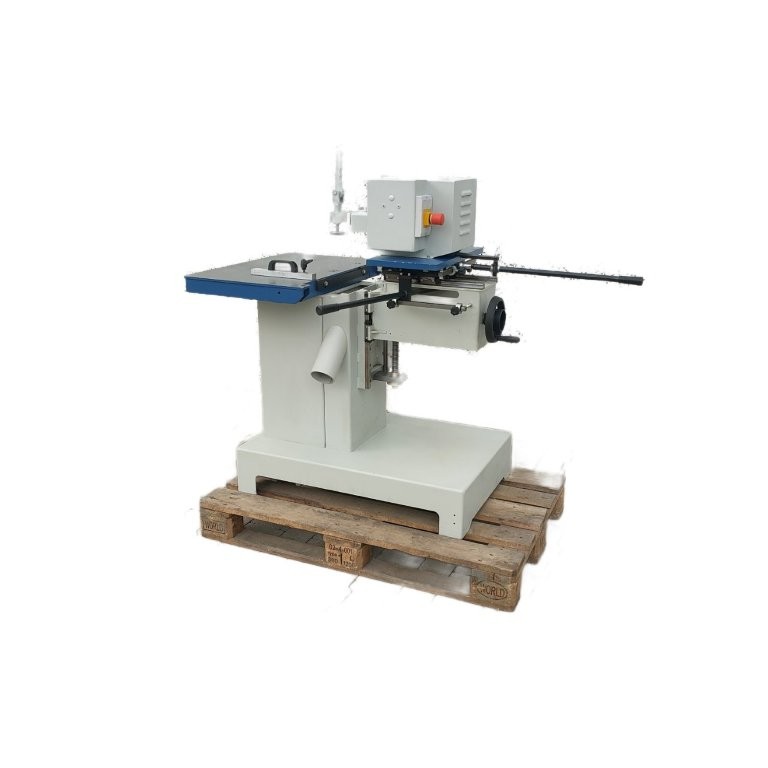

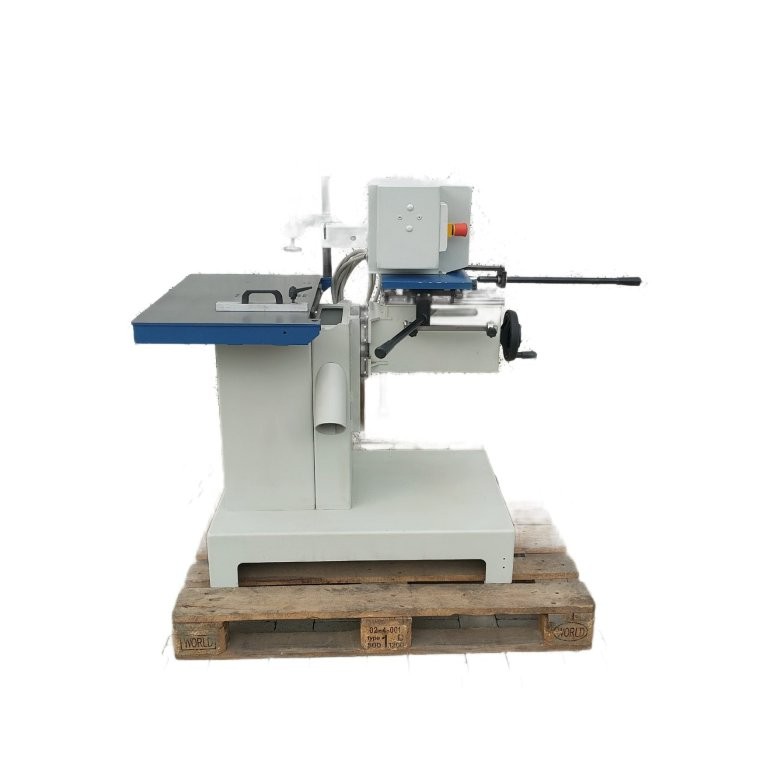

* MC C10 – Professional mortising machine with mobile drill head unit & ER32 precision chuck
The MC C10 mortising machine is the ideal solution for craftspeople, joiners, and industrial woodworkers who demand the highest precision, robustness, and ease of use in milling and drilling operations.
Developed by the Italian specialist MC from Rimini, the C10 combines a **fixed worktable with a smooth-running, mobile drill head unit**. This design guarantees absolute stability and vibration-free machining, even with heavy or long workpieces.
MC C10 – Professional mortising machine with mobile drill head unit Key Features & Product Highlights
*Highest tool precision thanks to the ER32 collet chuck:** The drill spindle head is equipped with a precise **ER32 collet system (Ø 16 mm)**. This enables quick tool changes, outstanding concentricity, and maximum slip resistance of the milling cutters under high load.
*Powerful industrial motor:** Equipped with a **2.2 kW (3 HP) three-phase motor (400V)**, the C10 effortlessly penetrates solid wood (hardwood/softwood), raw panels, veneered elements, and wood-veneered materials.
*Innovative single-lever operating mechanism:** The ergonomic single-lever control allows you to precisely and effortlessly control the longitudinal and transverse movement of the drill head.
*Innovative single-lever operating mechanism:** *Integrated stops & workpiece clamping:** Standard features include a mechanical screw-type hold-down clamp (optionally available as a double hold-down clamp/bridge for thin or flexible materials) and precise end stops for milling depth and length.
*Dust- and noise-reduced operation: Integrated dust extraction port for effective chip removal (minimum suction speed 30 m/s) and quiet operation.
Technical Data Overview
*Manufacturer: MC Metal Meccanica di Cenni Giovanni (Rimini, Italy)
*Model: C10 (Cavatrice a Punta C-10)
*Machine Concept: Fixed worktable / Mobile drilling head
*Worktable Dimensions: 600 x 280 mm
*Maximum Slotting Depth (Milling Depth): 150 mm
*Maximum Slotting Length: 250 mm
*Vertical Drilling Head Stroke: 150 mm
*Tool Holder / Chuck: Spindle with interchangeable ER32 collet (up to Ø 16 mm)
*Motor Power: 2.2 kW (400V / 3 phases)
*Noise Emission (Operation)** | 81.6 dB(A) at the operator's position (according to ISO 7960)
*Weight (Net)** | 170 kg
*External Dimensions (L x W x H)** | 90 x 70 x 115 cm
Versatile Applications
The MC Cenni C10 mortising machine is ideal for:
* Precise drilling and mortising for tenon joints, mortise and tenon joints in door, window, and furniture construction.
* Milling for lock cases, hinges, and fittings.
* Machining of solid wood, lumber, glued laminated timber, as well as chipboard, MDF, and veneer panels.
Safety & Quality Standards (CE compliant)
*Magnetothermal circuit breaker** including integrated emergency stop button and CEE plug.
*Spindle guard** for maximum safety during rotation.
*HIWIN linear guides and sliding blocks for precise guidance, durability, and minimal maintenance.
