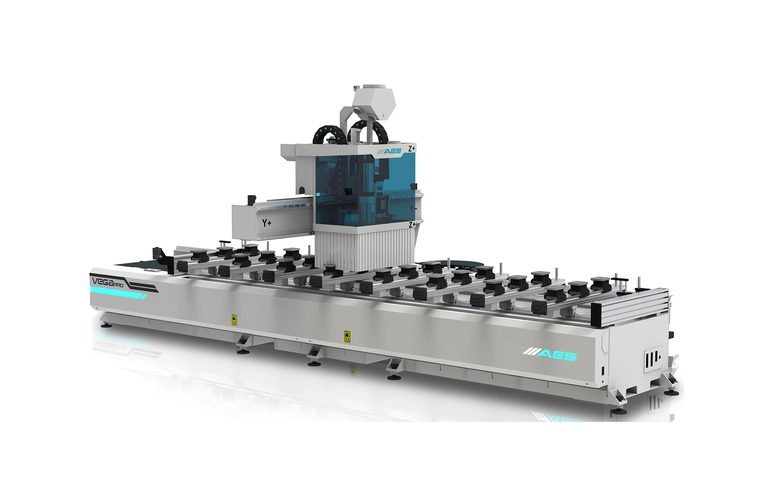

The new machining center with 3-4 axes technology shares the technological know-how of the Aes Group centers range offering an excellent quality/price ratio.
It stands out for a reduced footprint that allows to optimize the available space in the factory without compromising on productivity and machining quality.
Working areas | ||
X-Y axes dimensions | mm | 3200 x 1300 |
Y-axis panel clearance | mm | 1600 |
Axes | ||
Vectorial speed | m/min | 70 |
Z-axis panel clearance | mm | 200 |
Drilling unit | ||
Independent vertical spindles (up to) | no. | 14 |
Independent horizonal spindles (up to) | no. | 6 |
Rotation speed (max.) | rpm | 6000 |
Integrated blade in X, diameter | mm | 120 |
Routing unit | ||
Motor power (max.) | kW (hp) | 14 (19) |
Rotation speed (max.) | rpm | 24000 |
| ||
Available tools on tool changers (up to) | places | 26 |
